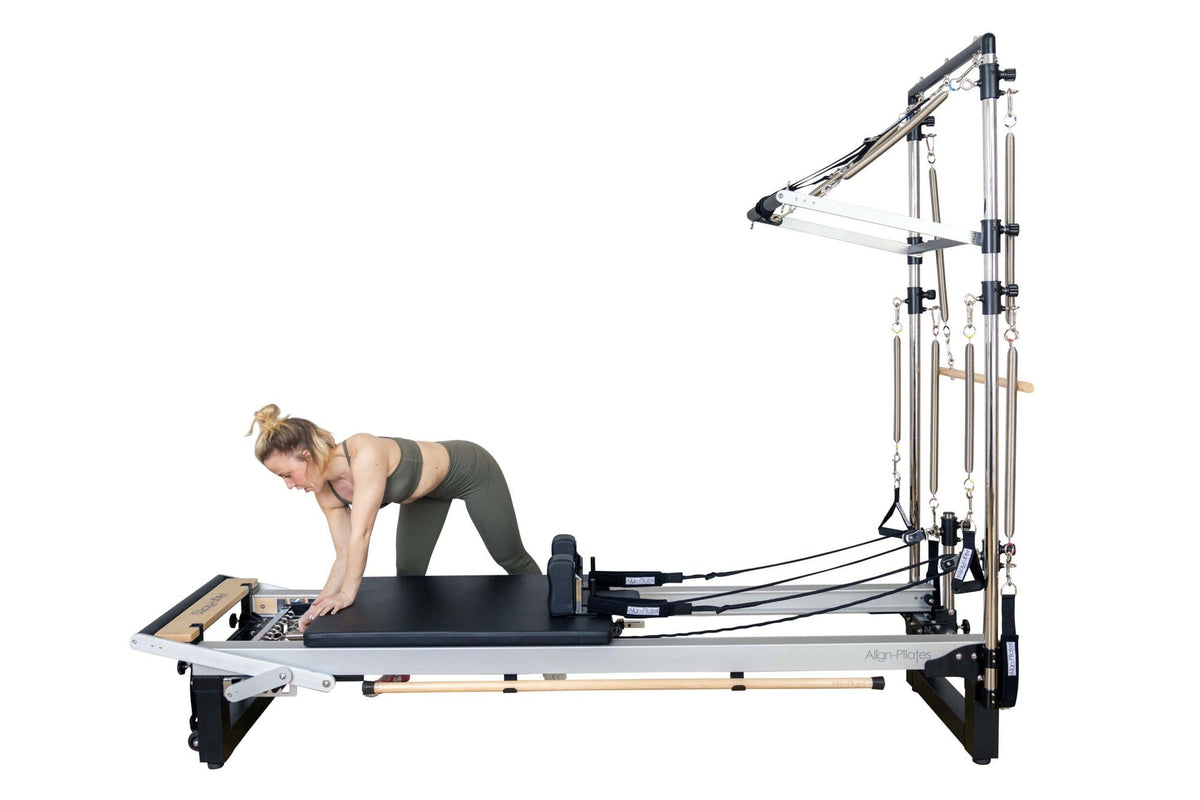

Align Pilates A8-Pro Reformer with Half Cadillac

The Align Pilates A8-Pro Reformer with Half Cadillac combines Align's extra large A-series studio reformer with a stainless steel half cadillac tower, adding spring arm, push through and roll down work at the head end.

The A8-Pro has a wide carriage on 8 PU wheels with 113 cm of travel, a 6 position lockable foot bar and a Rapid Change spring bar. Choose short 28 cm, standard 42 cm or rehab 64 cm legs.

An A-series bracket set bolts to the reformer and the tower slides in and locks with grub screws. The rope risers can stay on the reformer or move onto the tower uprights.

What's Included:

• Align Pilates A8-Pro Reformer with your chosen legs (28 cm, 42 cm or 64 cm)
• 5 reformer springs, silent ropes with double loop handles, shoulder rests and toolkit
• Align Pilates Half Cadillac Frame with push through bar, safety strap and roll down bar
• 8 cadillac springs (four 64 cm long, four 47 cm standard)
• 1 pair of foot straps and 1 pair of hand handles for the tower
• 2 pairs of rapid adjust double eyelet spring holders
• 8 aluminium carabiners and 8 double ended dog clips
• Half Cadillac Bracket set for A-series reformers

Features

Long travel, wide carriage
The A8-Pro gives 113 cm of carriage travel on 8 PU wheels in anodised aluminium runners, with an oversized carriage for a broad range of clients.

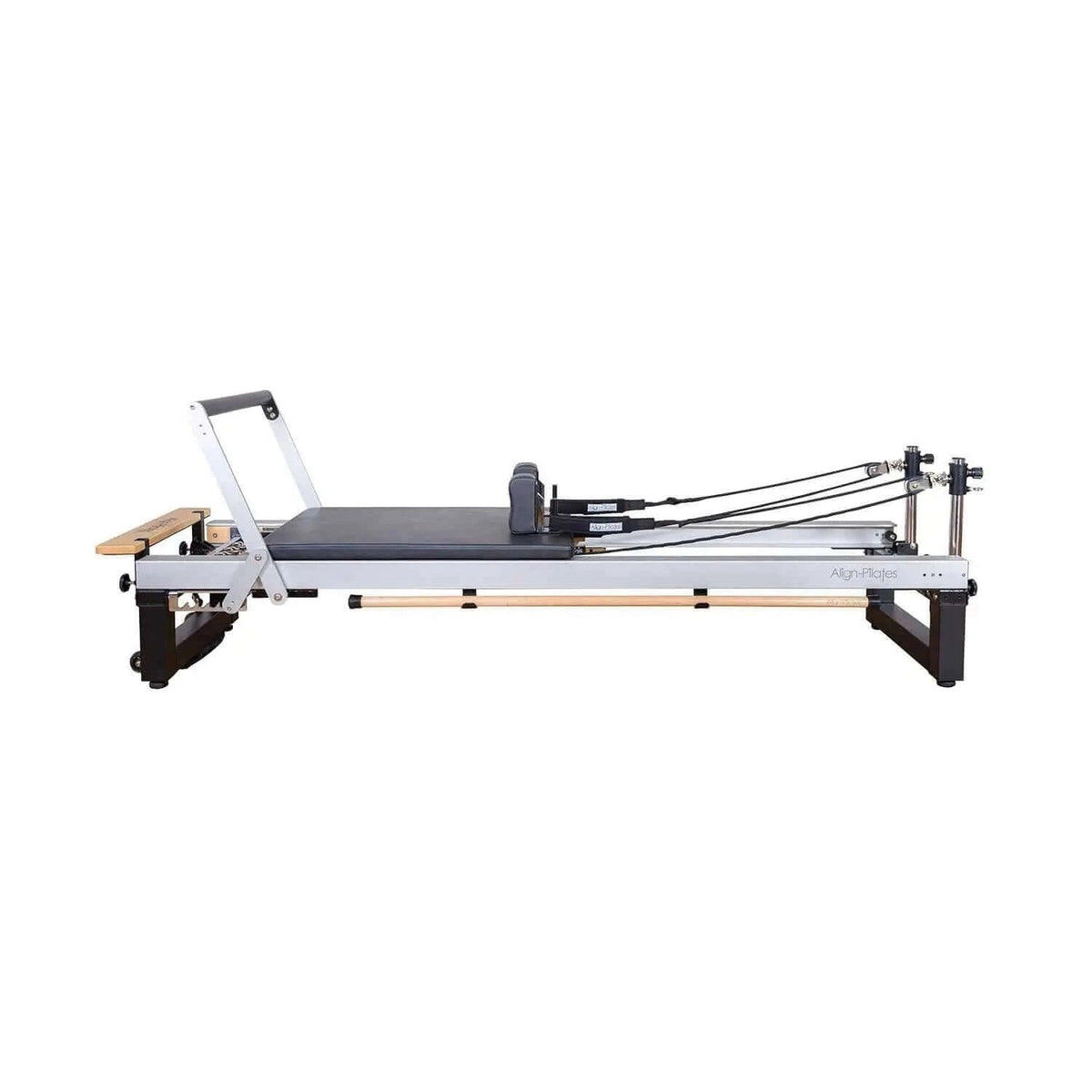

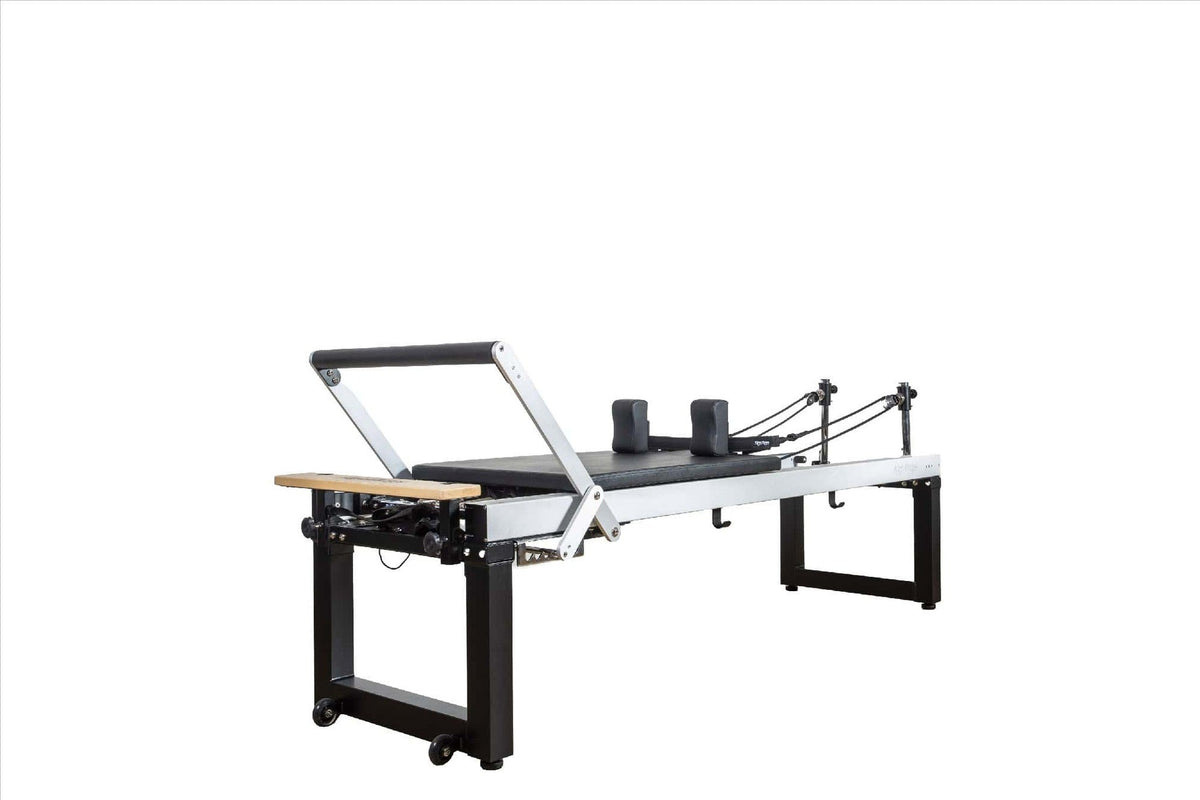

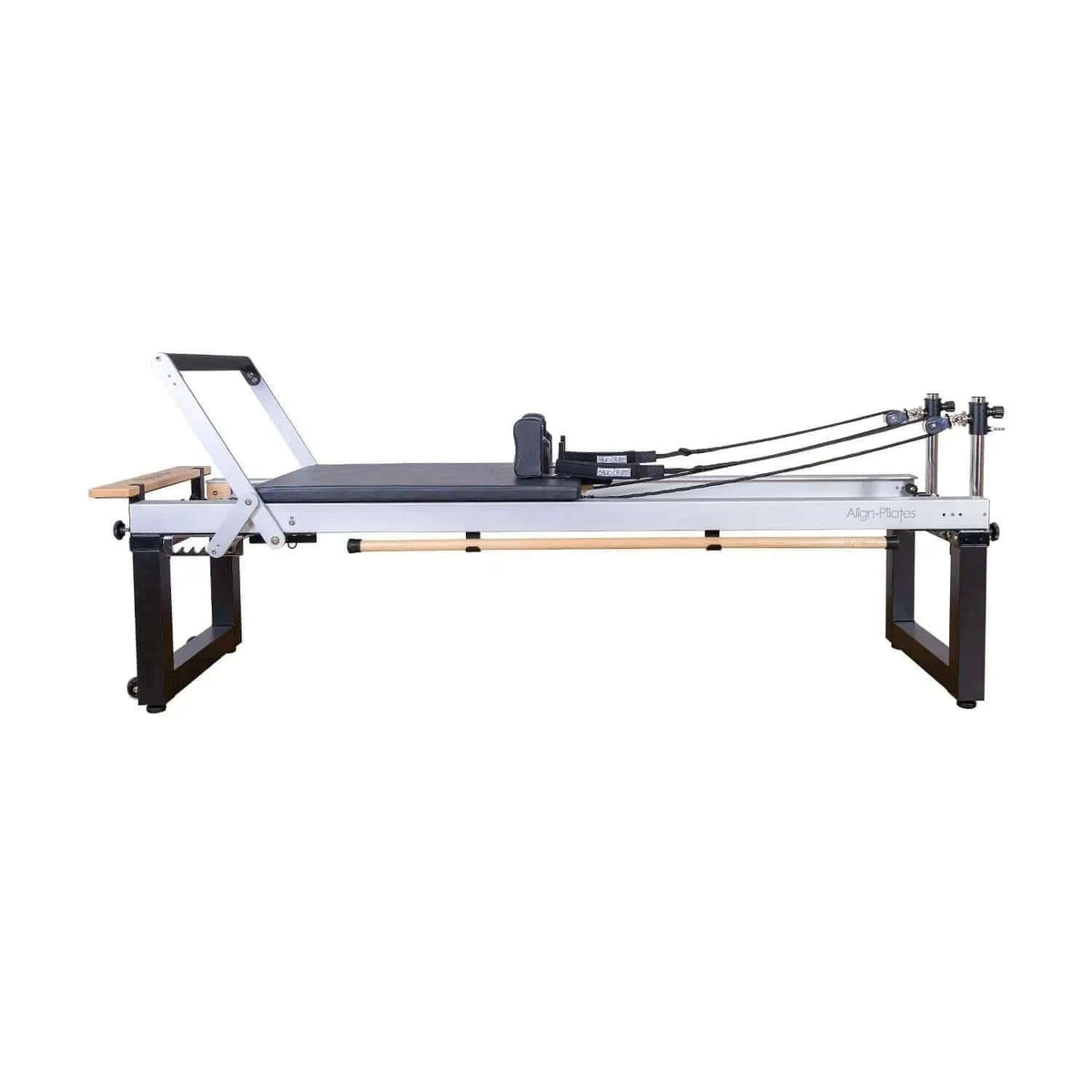

Three leg heights
Order short 28 cm, standard 42 cm or rehab 64 cm legs. The legs are interchangeable, so the bed height can change later.

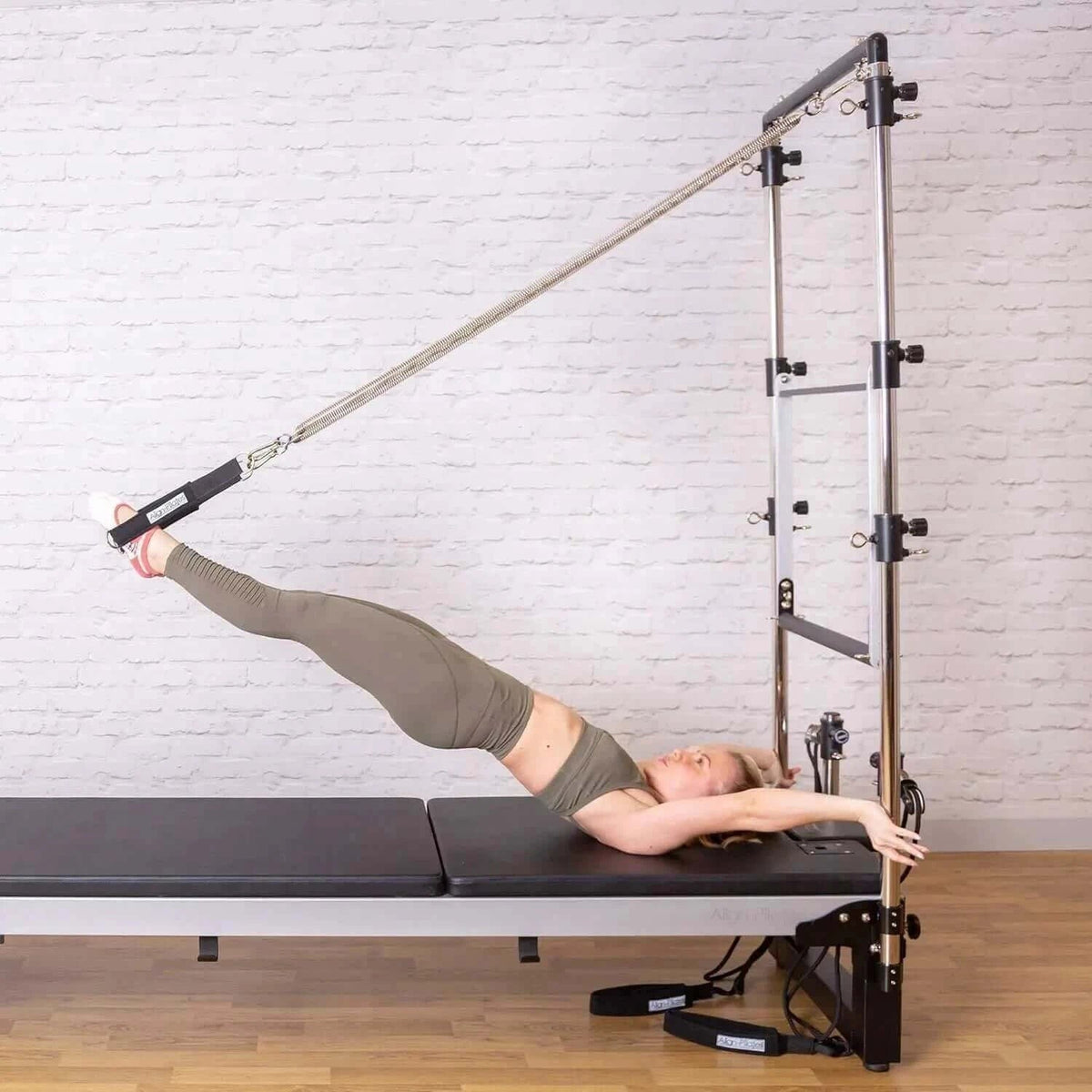

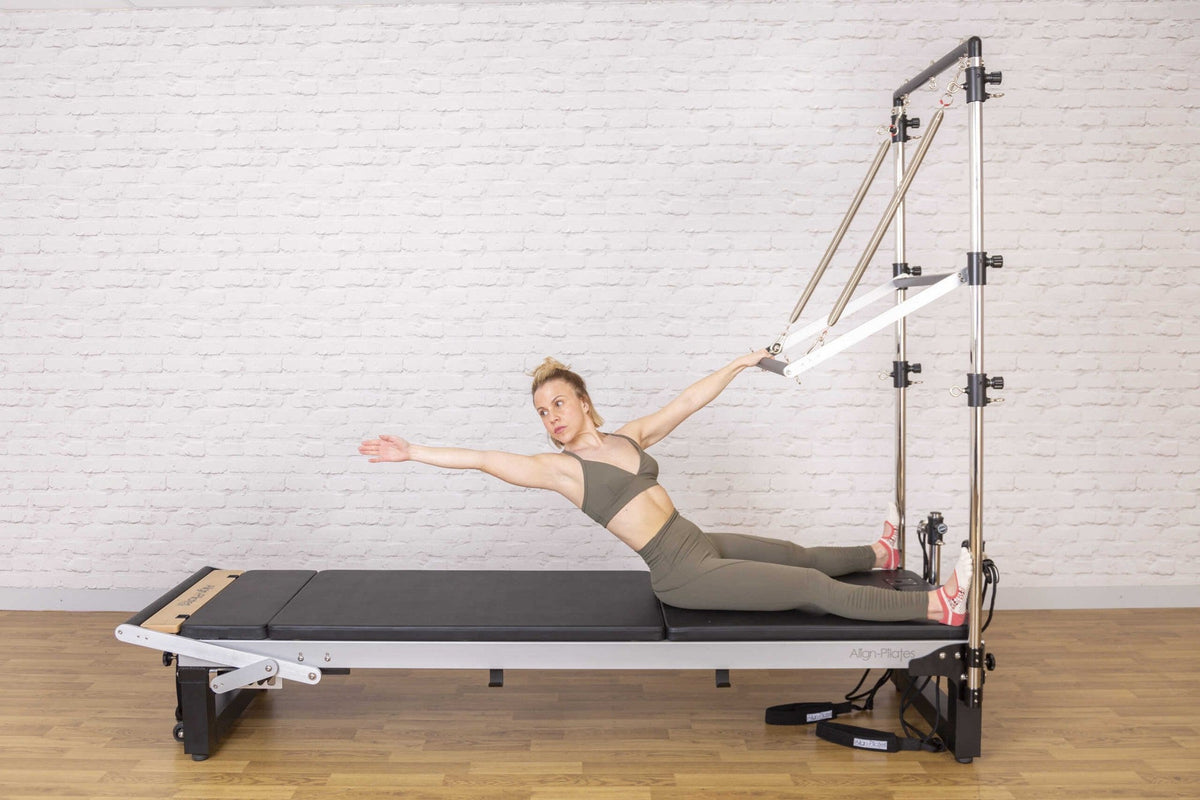

Half cadillac tower
Sliding spring holders, a height adjustable push through bar and a roll down bar open up cadillac repertoire without a second machine.

Rapid Change spring bar
The spring bar moves between its 4 positions, spanning 20 cm, with the springs still attached.

Six position foot bar
The padded foot bar locks in 6 positions including flat, and the 3 position headrest and removable off centre shoulder rests fine tune the setup.

Flexible rope riser position
Keep the rope risers on the reformer or fold them away and mount pulleys on the tower's stainless steel tubes to clear the head end.

Specifications

• Reformer Frame: Anodised aluminium runners, 8 PU wheel carriage
• Leg Heights: 11" | 28 cm, 16.5" | 42 cm or 25.2" | 64 cm
• Carriage Travel: 44.5" | 113 cm
• Carriage: 35.8" x 26.4" | 91 x 67 cm
• Reformer Springs: 5 (2 light, 2 medium, 1 strong)
• Spring Bar: Rapid Change, 4 positions over 7.9" | 20 cm
• Foot Bar: Lockable, 6 positions including flat
• Rope Risers: Fold away, 5 height positions, T-bar and Pro Rope adjustment
• Headrest: 3 positions
• Reformer Weight: About 165 lb | 75 kg depending on legs
• Half Cadillac Frame: Stainless steel uprights, push through bar, maple roll down bar
• Cadillac Springs: 8 (four 25" | 64 cm, four 18.5" | 47 cm)
• Assembled Tower Height: 78.3" | 199 cm short legs, 83.9" | 213 cm standard, 92.5" | 235 cm rehab
• Half Cadillac Frame Weight: 66 lb | 30 kg
• Max User Weight: 330 lb | 150 kg
• User Height: 4 ft 10 in to 6 ft 4 in | 145 to 193 cm

Installation

Build the reformer
The A8-Pro weighs over 70 kg and arrives in 4 boxes, so two people are needed. A socket spanner and Allen key are included. Align suggests resting the frame on two trestles 180 cm apart to fit the legs, and placing the wheeled legs at the standing platform end when a half cadillac is fitted.

Check ceiling height
Inserting the frame needs about 2.45 m of clearance on standard legs and 2.75 m on rehab legs. If the room is tall enough for the tower but not to insert it, remove the legs, fit the tower and then refit the legs.

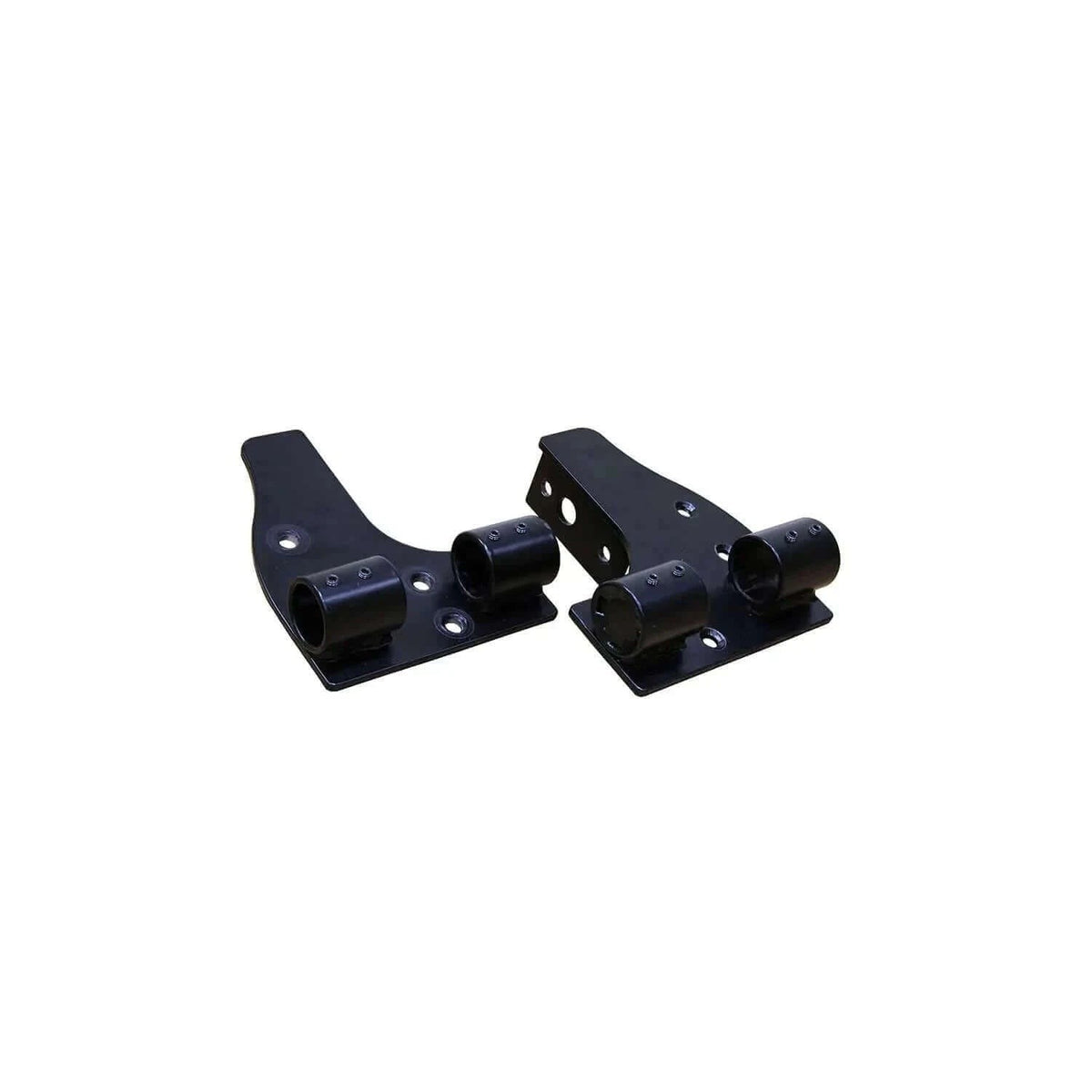

Fit brackets and frame
Bolt each bracket on with 4 short bolts and 2 long bolts into the underside of the frame, then slide the tower in with a helper and tighten the grub screws with the Allen key.

Resources

• Align-Pilates A8-Pro assembly and user manual (PDF). Leg fitting, foot bar, rope risers, carriage setup and adjustments.
• Align-Pilates Half Cadillac assembly and user guide (PDF). A-series bracket fitting, ceiling heights, safe use and maintenance.
• Align-Pilates routine safety and maintenance guide (PDF). Inspection schedule for springs, ropes and hardware.

Warranty, Shipping and Returns

The manufacturer's commercial warranty applies from the purchase date to the first owner and is rated for up to 37.5 hours of use a week and users up to 330 lb (150 kg). The terms are set by component: ten years on metal and aluminium frames and welded parts, five years on wooden frames and the spring bar, three years on the footbar mechanism, two years on other non-wear parts and one year on ropes, straps, clips, handles and wheels.

Spring cover is two years or 3,000 hours for studios with five reformers or fewer, and one year or 3,000 hours for larger studios. Upholstery carries 90 days from delivery. The warranty does not cover normal wear, damage from misuse or unapproved repairs, cosmetic scratches or rust, and it requires the maintenance schedule in the manual to be followed.

Shipping
We ship free to every US address. Stocked Align-Pilates equipment leaves the warehouse within two business days of order confirmation, with larger apparatus palletised for freight so it arrives undamaged. Expect a call from the carrier to schedule delivery to your curb, and have a helper ready to move the boxes indoors. Typical delivery is 1 to 3 weeks, and tracking follows by email.

Damage in transit
Inspect the shipment before signing for it. Write any damage on the receipt, photograph it and contact us within 48 hours.

Returns
Under Align-Pilates' policy, reformers, cadillacs, chairs and ladder barrels cannot be returned once shipped, so please check your space and the specifications before ordering; we are glad to help you choose. If equipment arrives damaged, defective or incorrect, contact us within 48 hours of delivery and we will arrange the replacement with the manufacturer. Orders can be cancelled free of charge until they are dispatched.
