Align Pilates C8-Pro Reformer with Full Cadillac

The Align Pilates C8-Pro Reformer with Full Cadillac mounts Align's full stainless steel cadillac frame over the C8-Pro studio reformer, creating a reformer and cadillac combination on a single footprint.

The C8-Pro runs on 8 PU wheels in anodised aluminium runners with 106.5 cm of travel and a Rapid Change spring bar. In Align's current reformer line, the C8-Pro is the model listed for the full cadillac.

The frame arrives with a trapeze and fluffy foot support, fuzzy handles, sliding spring eyelets, a push through bar with safety strap and a roll down bar, plus 12 springs for cadillac work.

What's Included:

• Align Pilates C8-Pro Reformer with 5 springs, silent ropes with double loop handles and a silent foot strap
• Align Pilates Full Cadillac Frame with push through bar, safety strap and roll down bar
• 1 trapeze with fluffy foot support and 1 pair of fuzzy handles
• 1 pair of foot straps and 1 pair of hand handles
• 2 pairs of rapid adjust double eyelet spring holders
• 14 aluminium carabiners and 10 double ended dog clips
• 12 cadillac springs, including 2 very strong springs for the trapeze
• Half Cadillac Bracket and Full Cadillac Bracket sets for C-series reformers, both needed to mount the full frame

Features

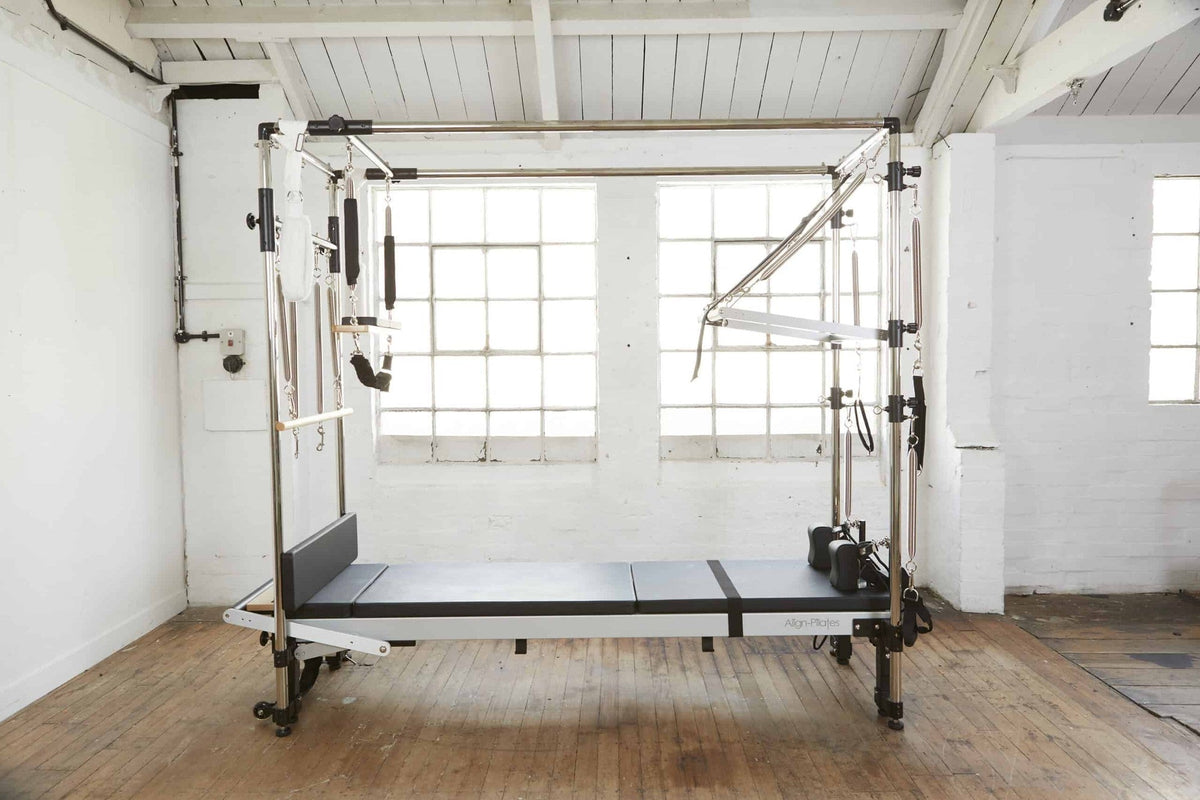

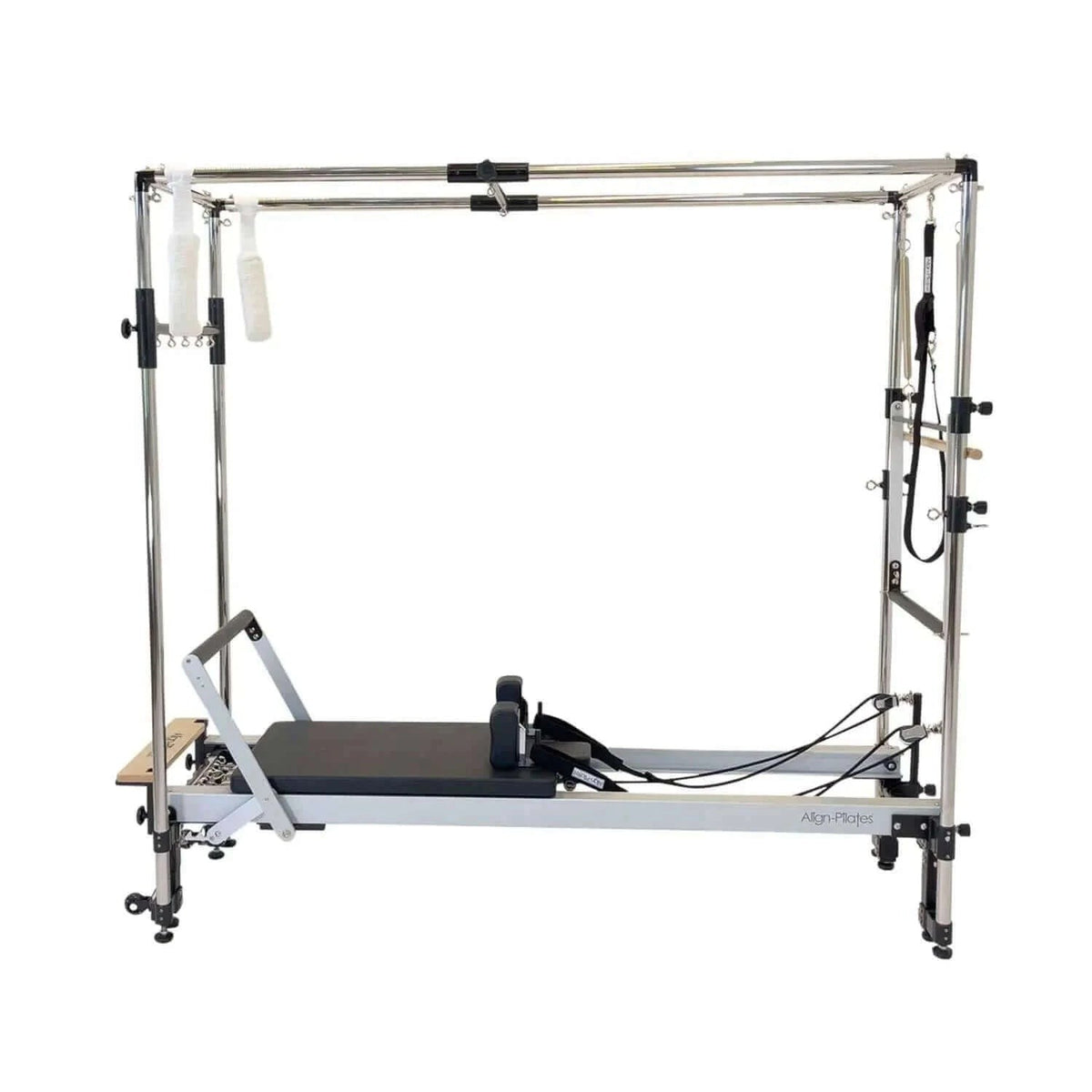

Full cadillac over the reformer
A four post stainless steel frame surrounds the C8-Pro, opening up trapeze, hanging and spring work across the whole length of the bed.

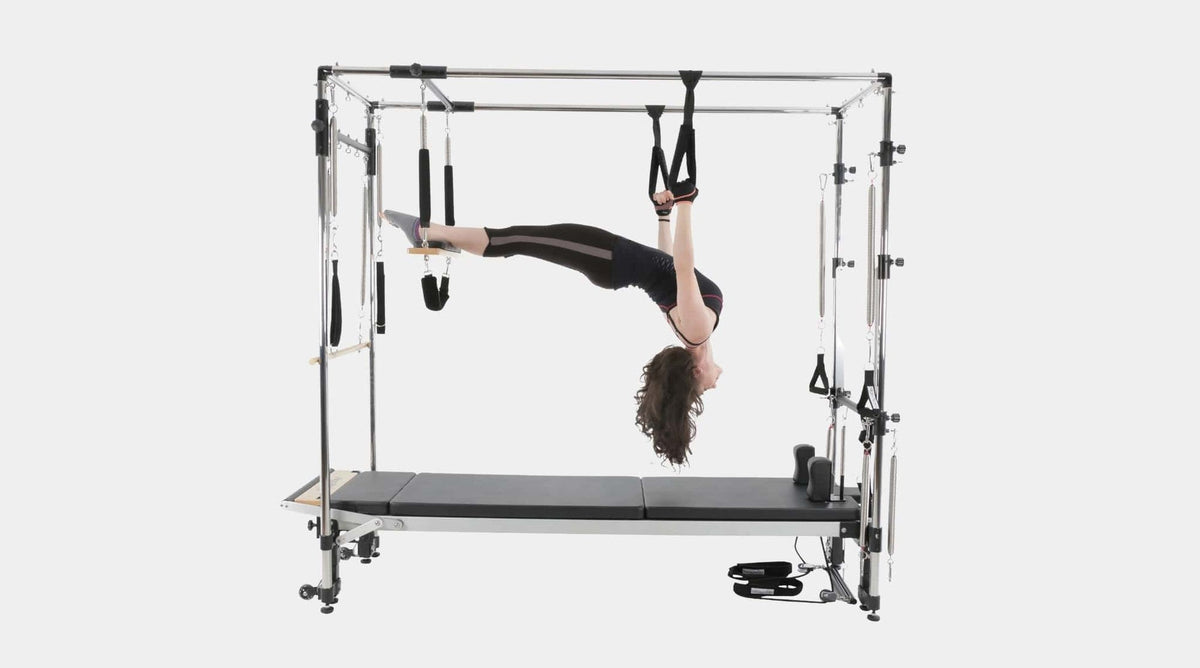

Trapeze and fuzzies
The trapeze with fluffy foot support and the pair of fuzzy handles hang from the top frame, with the trapeze carried on very strong springs.

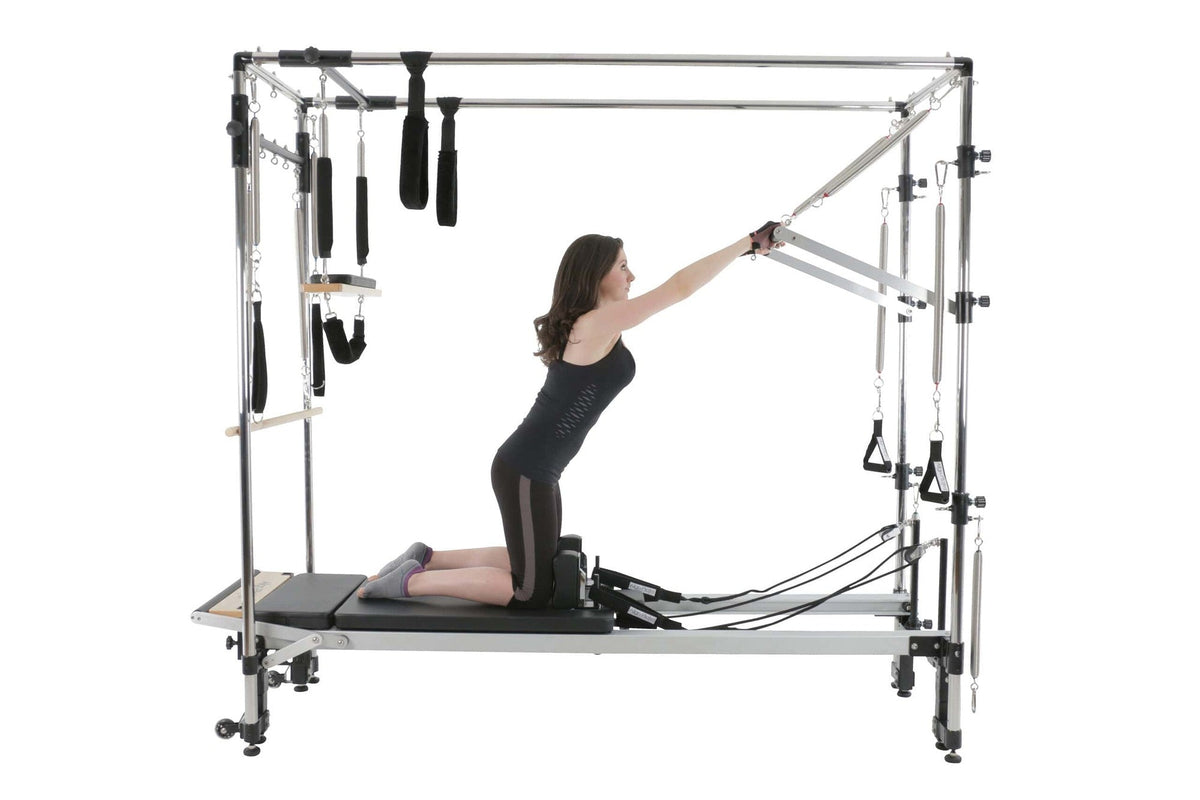

Push through bar with safety strap
The push through bar is designed for push and swing through exercises with the supplied springs, and its quick release safety strap stops the bar swinging down under tension.

Sliding spring positions
Two pairs of rapid adjust double eyelet spring holders slide on the uprights, and the cross bars move to place springs where each exercise needs them.

Rapid Change spring bar
On the reformer, the spring bar lifts into a new position with the springs attached, using one hand.

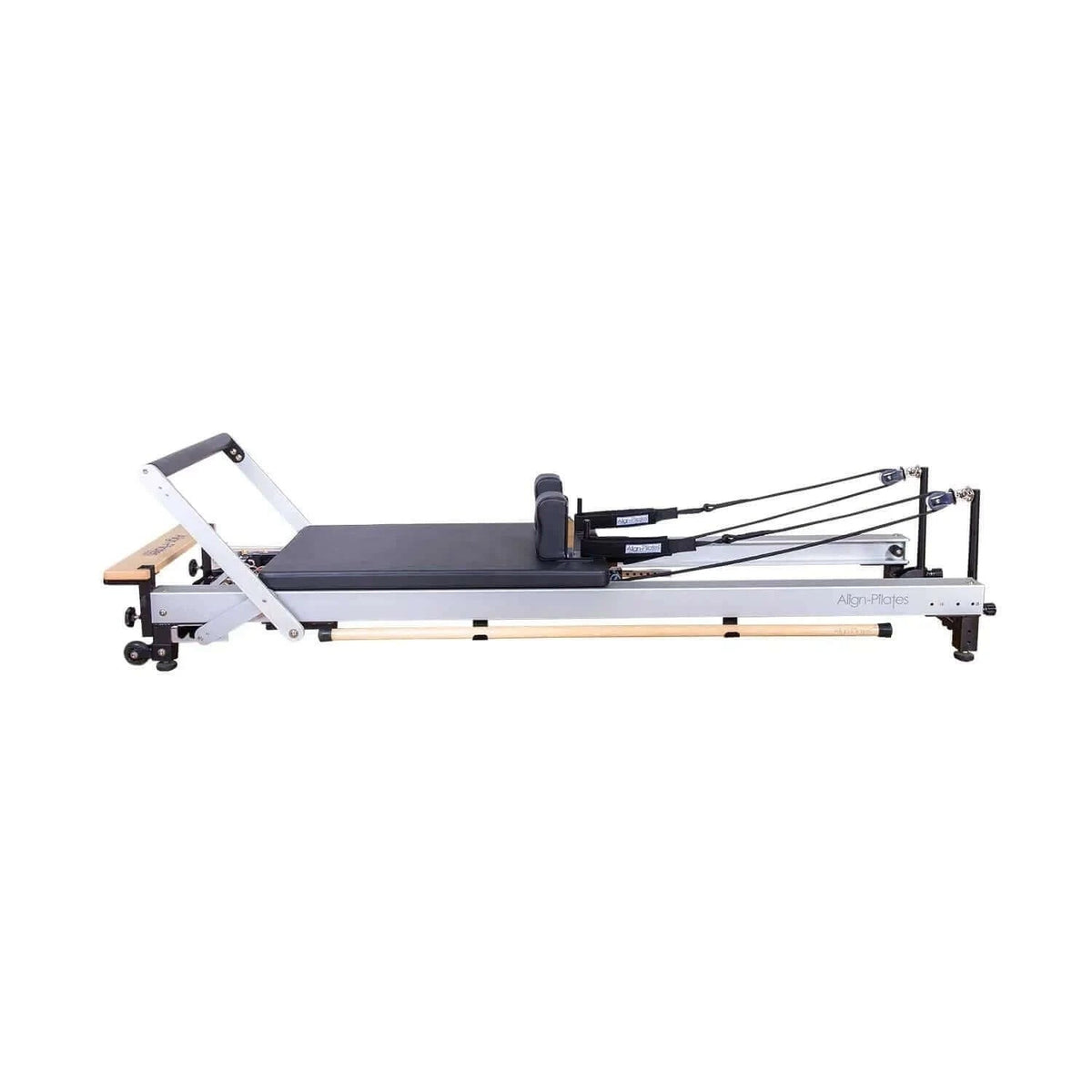

Quiet 8 wheel carriage
Eight PU wheels in anodised aluminium runners give 106.5 cm of soft, quiet travel for reformer classes.

Specifications

• Reformer Frame: Anodised aluminium runners, 8 PU wheel carriage
• Reformer Footprint: 92.5" x 26" | 235 x 66 cm
• Carriage Travel: 41.9" | 106.5 cm
• Carriage: 36.2" x 22.8" | 92 x 58 cm
• Reformer Springs: 5 (2 light, 2 medium, 1 strong)
• Foot Bar: Lockable, 4 positions including flat
• Reformer Weight: 130 lb | 59 kg (gross)
• Cadillac Frame: Full stainless steel upper frame, sliding cross bars
• Cadillac Springs: 12, in 18.5" | 47 cm and 25" | 64 cm lengths
• Cadillac Frame Weight: 144.6 lb | 65.6 kg
• Height Clearance to Assemble: 96.5" | 2.45 m
• Max User Weight: 330 lb | 150 kg
• User Height: 4 ft 10 in to 6 ft 4 in | 145 to 193 cm
• Cartons: Reformer: 94.5" x 27.6" x 12.4" (122.8 lb) and 46.5" x 24.4" x 5.5" (48.3 lb). Frame: 87.8" x 33.1" x 5.1" (144.6 lb)

Installation

Build the reformer
The C8-Pro arrives in 2 boxes and the main box weighs around 40 kg, so two people are needed. Align puts reformer assembly at 30 minutes to 1 hour.

Check height and fit the uprights
Align's cadillac guide calls for 2.45 m of height clearance to insert the poles. Loosen the grub screws on all four corners, then insert the uprights one at a time.

Assemble the top frame
Fit the corner caps, slide the trapeze carriage over the cross bars and bolt the corners together. Attach the push through bar, trapeze and safety strap, using carabiners where springs meet the frame and dog clips where they meet a bar or handle.

Resources

• Align-Pilates C8-Pro assembly and user manual (PDF). Reformer assembly, leg options, adjustments and parts list.
• Align-Pilates Full Cadillac assembly guide (PDF). Pole, top frame, trapeze and spring assembly steps. Written for the A2 cadillac bed version.
• Align-Pilates routine safety and maintenance guide (PDF). Inspection schedule for springs, ropes and hardware.

Warranty, Shipping and Returns

Align-Pilates covers this reformer with its limited commercial warranty, which runs from the date of purchase for the original owner and allows studio use of up to 37.5 hours a week with a user weight limit of 330 lb (150 kg). Metal and aluminium frames and welded components carry ten years. Wooden frames and the spring bar mechanism carry five years. Footbar mechanisms carry three years and other non-wear components two years. Ropes, straps, clips, handles and wheels carry one year.

Springs are covered for two years or 3,000 hours, whichever comes first, in studios running up to five reformers, and for one year or 3,000 hours in studios running six or more. Upholstery is covered for 90 days from delivery. Wear and tear, misuse, unauthorised modification, finish scratches and rust are excluded, and the cover depends on following the maintenance instructions in the manual.

Shipping
Delivery is free anywhere in the United States. When the item is in stock, Align-Pilates ships it within two business days of confirmation. Large equipment is strapped to a pallet and moved by freight carrier, who will call ahead to book a delivery window; the handover is curbside, so line up a second person to help carry it in. Allow 1 to 3 weeks from order to delivery, and we forward tracking once the shipment is collected.

Check before you sign
Look over each carton when it arrives. Record any damage on the delivery paperwork, take photos and let us know within 48 hours.

Returns
Align-Pilates does not accept returns on reformers, cadillacs, chairs or ladder barrels, so this is a final sale once dispatched. We recommend confirming dimensions, ceiling height and access before ordering. Damaged, defective or incorrect deliveries reported within 48 hours are put right with the manufacturer, and orders can be cancelled without charge until they leave the warehouse.

About Align-Pilates

Align-Pilates is a UK Pilates equipment maker whose range runs from folding home reformers to full studio installations: the A, C and M series reformers, half and full cadillac frames, the Combo Chair and the Ladder Barrel. Its reformers share a common accessory system, so jump boards, platform extenders, mat converters and cadillac frames are matched to each series. In North America the range is distributed by Kloz Inc.

Merovea is an authorised Align-Pilates reseller. Equipment is supplied new with the full manufacturer's warranty, and we handle warranty and parts questions with the distributor for you.
