Align Pilates C8-Pro Reformer with Half Cadillac

The Align Pilates C8-Pro Reformer with Half Cadillac pairs Align's aluminium C-series studio reformer with a stainless steel half cadillac tower, so one footprint covers reformer classes and tower work.

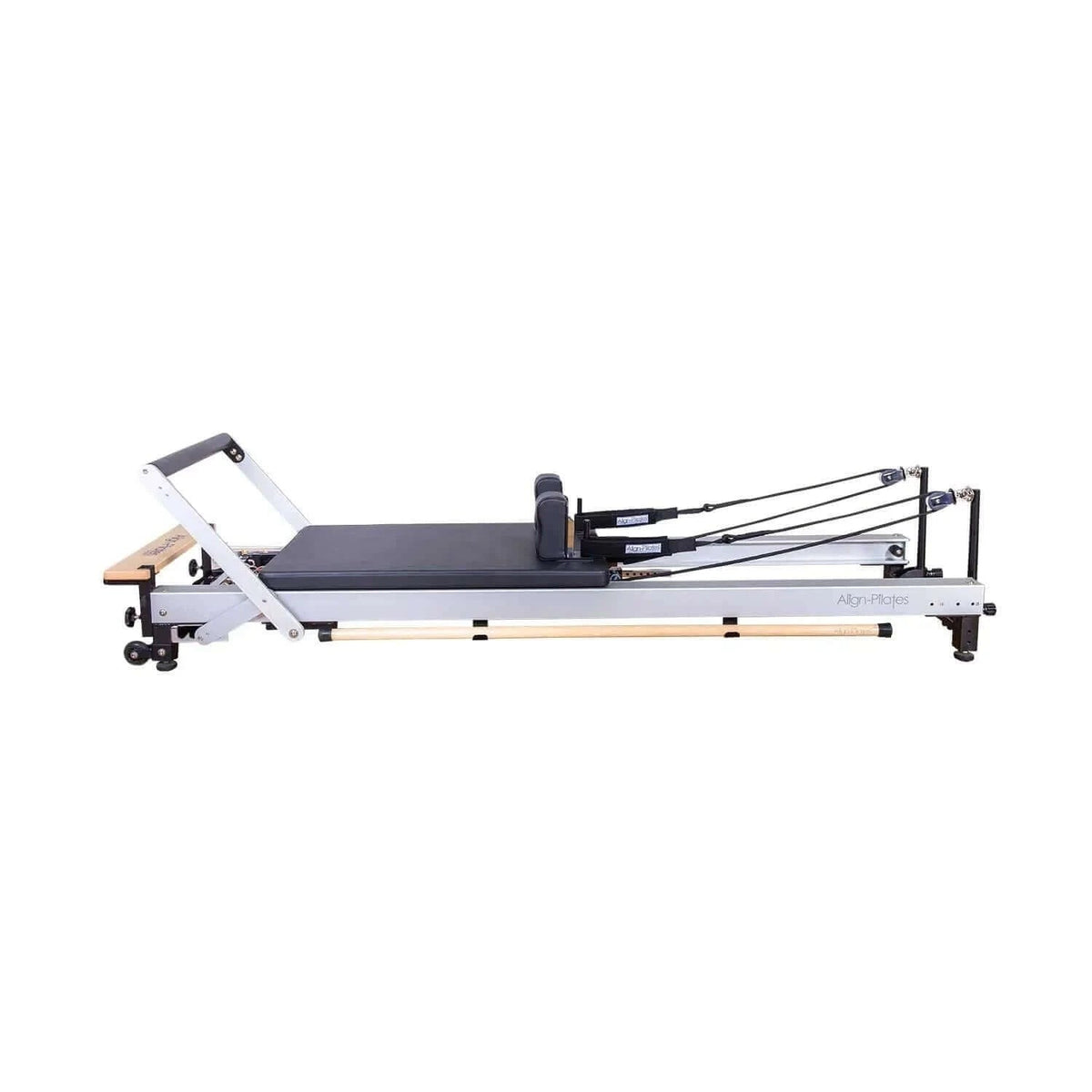

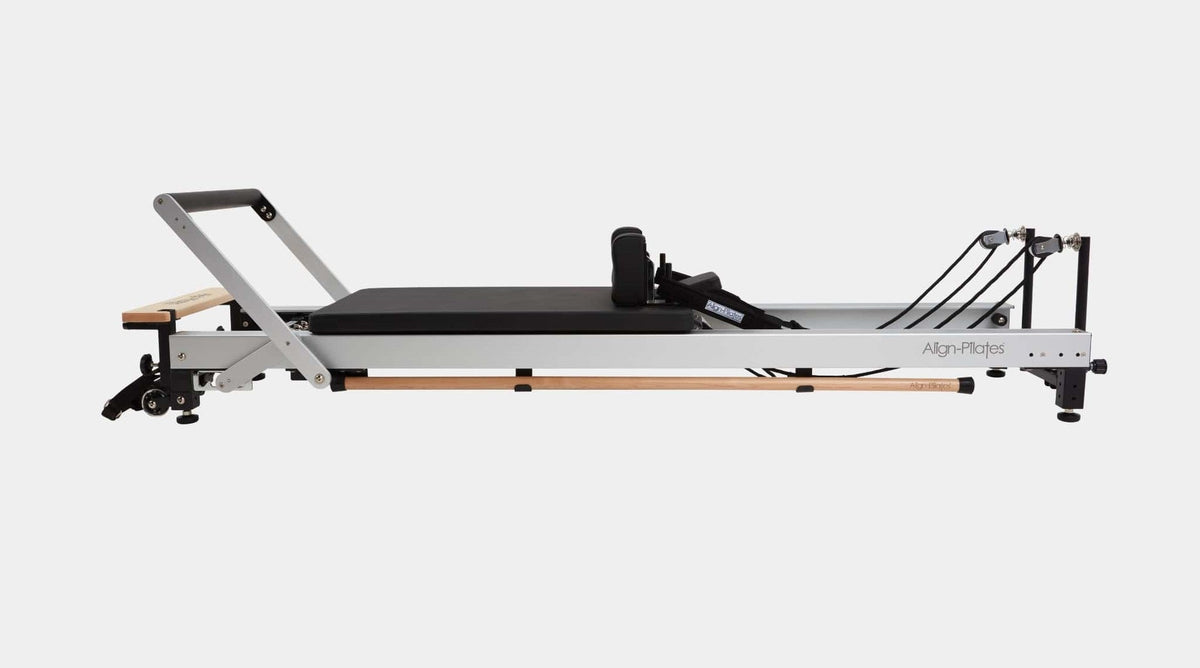

The C8-Pro rolls on 8 PU wheels inside anodised aluminium runners and gives 106.5 cm of carriage travel. Its Rapid Change spring bar moves with the springs still attached, which keeps changeovers quick between clients.

The tower slides into a bracket set that bolts to the reformer legs. It brings a push through bar with safety strap, a roll down bar and eight cadillac springs on sliding holders.

What's Included:

• Align Pilates C8-Pro Reformer with 5 springs, silent ropes with double loop handles and a silent foot strap
• Align Pilates Half Cadillac Frame with push through bar, safety strap and roll down bar
• 8 cadillac springs (four 64 cm long, four 47 cm standard)
• 1 pair of foot straps and 1 pair of hand handles for the tower
• 2 pairs of rapid adjust double eyelet spring holders
• 8 aluminium carabiners and 8 double ended dog clips
• Half Cadillac Bracket set for the C8-Pro and C2-Pro reformers

Features

Tower work on the same machine
The half cadillac adds push through, roll down and hanging spring exercises at the head of the reformer, so clients move between repertoires without changing stations.

Rapid Change spring bar
Lift the spring bar and set it in a new position with the springs in place. There is no separate carriage stopper to move.

Quiet 8 wheel carriage
Eight PU wheels run in anodised aluminium runners for a soft, quiet ride with low upkeep. Travel measures 106.5 cm.

Adjustable push through bar
The push through bar height and the four sliding spring holders lock into set holes on the uprights, and a quick release safety strap keeps the bar under control when sprung from below.

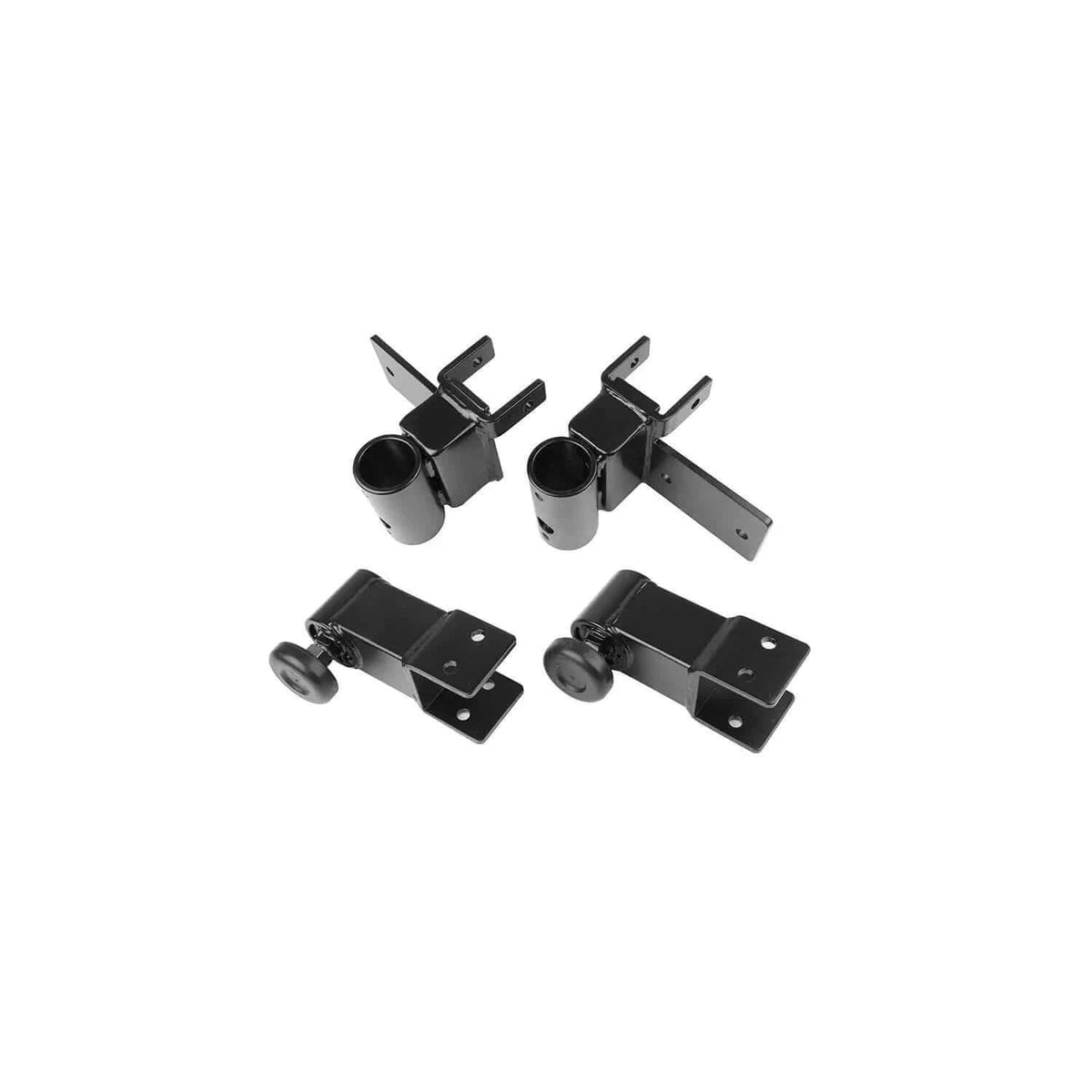

Bolt on bracket set
The C-series brackets bolt to the reformer legs and runners with the supplied Allen key, then the frame slides in and locks with grub screws.

Oversize lockable foot bar
The padded foot bar locks in 4 positions including flat, and off centre shoulder rests give a choice of widths.

Specifications

• Reformer Frame: Anodised aluminium runners, 8 PU wheel carriage
• Reformer Footprint: 92.5" x 26" | 235 x 66 cm
• Bed Height: 9.4" | 24 cm (16.5" | 42 cm with optional leg extensions)
• Carriage Travel: 41.9" | 106.5 cm
• Carriage: 36.2" x 22.8" | 92 x 58 cm
• Reformer Springs: 5 (2 light, 2 medium, 1 strong)
• Foot Bar: Lockable, 4 positions including flat
• Rope Risers: Removable, 7 height positions
• Reformer Weight: 130 lb | 59 kg (gross)
• Half Cadillac Frame: Stainless steel uprights, push through bar, maple roll down bar
• Cadillac Springs: 8 (four 25" | 64 cm, four 18.5" | 47 cm)
• Assembled Tower Height: 76.8" | 195 cm (81.9" | 208 cm with leg extensions)
• Half Cadillac Frame Weight: 66 lb | 30 kg
• Max User Weight: 330 lb | 150 kg
• User Height: 4 ft 10 in to 6 ft 4 in | 145 to 193 cm
• Cartons: Reformer: 94.5" x 27.6" x 12.4" (122.8 lb) and 46.5" x 24.4" x 5.5" (48.3 lb). Frame: 76.8" x 32.3" x 7.9" (66.1 lb)

Installation

Build the reformer
The C8-Pro arrives in 2 boxes and the main box weighs around 40 kg, so two people are needed to unpack it. Align puts reformer assembly at 30 minutes to 1 hour.

Fit the brackets
At the rope riser end, bolt the lower bracket feet to the legs with the supplied bolts and washers, then fix the upper brackets to the runners. Hand tighten everything first, then tighten fully with the Allen key.

Insert the frame
Level the reformer with all four feet on the floor, loosen the grub screws and have two people slide the frame into the brackets with the knobs facing outward. Measure the ceiling first, as Align notes 2.45 m of clearance is needed to insert the frame on a reformer with 40 cm legs.

Resources

• Align-Pilates C8-Pro assembly and user manual (PDF). Reformer assembly, leg options, adjustments and parts list.
• Align-Pilates Half Cadillac assembly and user guide (PDF). Bracket fitting, frame installation, safe use of the push through bar and maintenance.
• Align-Pilates routine safety and maintenance guide (PDF). Inspection schedule for springs, ropes and hardware.

Warranty, Shipping and Returns

The manufacturer's commercial warranty applies from the purchase date to the first owner and is rated for up to 37.5 hours of use a week and users up to 330 lb (150 kg). The terms are set by component: ten years on metal and aluminium frames and welded parts, five years on wooden frames and the spring bar, three years on the footbar mechanism, two years on other non-wear parts and one year on ropes, straps, clips, handles and wheels.

Spring cover is two years or 3,000 hours for studios with five reformers or fewer, and one year or 3,000 hours for larger studios. Upholstery carries 90 days from delivery. The warranty does not cover normal wear, damage from misuse or unapproved repairs, cosmetic scratches or rust, and it requires the maintenance schedule in the manual to be followed.

Shipping
We ship free to every US address. Stocked Align-Pilates equipment leaves the warehouse within two business days of order confirmation, with larger apparatus palletised for freight so it arrives undamaged. Expect a call from the carrier to schedule delivery to your curb, and have a helper ready to move the boxes indoors. Typical delivery is 1 to 3 weeks, and tracking follows by email.

Damage in transit
Inspect the shipment before signing for it. Write any damage on the receipt, photograph it and contact us within 48 hours.

Returns
Under Align-Pilates' policy, reformers, cadillacs, chairs and ladder barrels cannot be returned once shipped, so please check your space and the specifications before ordering; we are glad to help you choose. If equipment arrives damaged, defective or incorrect, contact us within 48 hours of delivery and we will arrange the replacement with the manufacturer. Orders can be cancelled free of charge until they are dispatched.

About Align-Pilates

Align-Pilates designs Pilates apparatus for studios, clinics and homes, and is known for giving studio features such as rapid-change spring bars, oversized footbars and precision rope adjusters to machines at a realistic price. The line-up covers reformers in aluminium, steel and maple, cadillac conversions, chairs, barrels and a full set of series-specific accessories. Kloz Inc is its exclusive North American distributor.

Merovea sells Align-Pilates as an authorised reseller, with every order supplied new and covered by the manufacturer's warranty.
