Align Pilates C8-S Reformer

The Align Pilates C8-S Pro takes the mechanics of the C8-Pro and wraps them in a cleaner white frame. The standing platform and rope risers are built into the frame for smooth, uninterrupted lines.

It uses the same carriage, runner profile, running gear and adjustment systems as the C8-Pro, so it rides just as quietly on 8 PU wheels with 105 cm of carriage travel.

The C8-S Pro stands 26 cm high as standard, rising to 42 cm with optional leg extensions. It suits group reformer studios and design conscious home studios alike.

What's Included:

• C8-S Pro reformer with white frame and legs
• Upholstered carriage on 8 PU wheels
• Rapid Change spring bar with 5 springs (2 light, 2 medium, 1 strong)
• Oversized lockable foot bar
• Integrated standing platform
• Removable stainless steel rope risers
• Ropes, handles and silent foot strap
• Off centre shoulder rests

Features

Streamlined white design
The standing platform and rope risers sit within the frame, and the frame and legs are left undrilled for a tidy look in rooms where style matters.

Rapid Change spring bar
Move the spring bar one handed with the springs still attached, which keeps changeovers short in group classes.

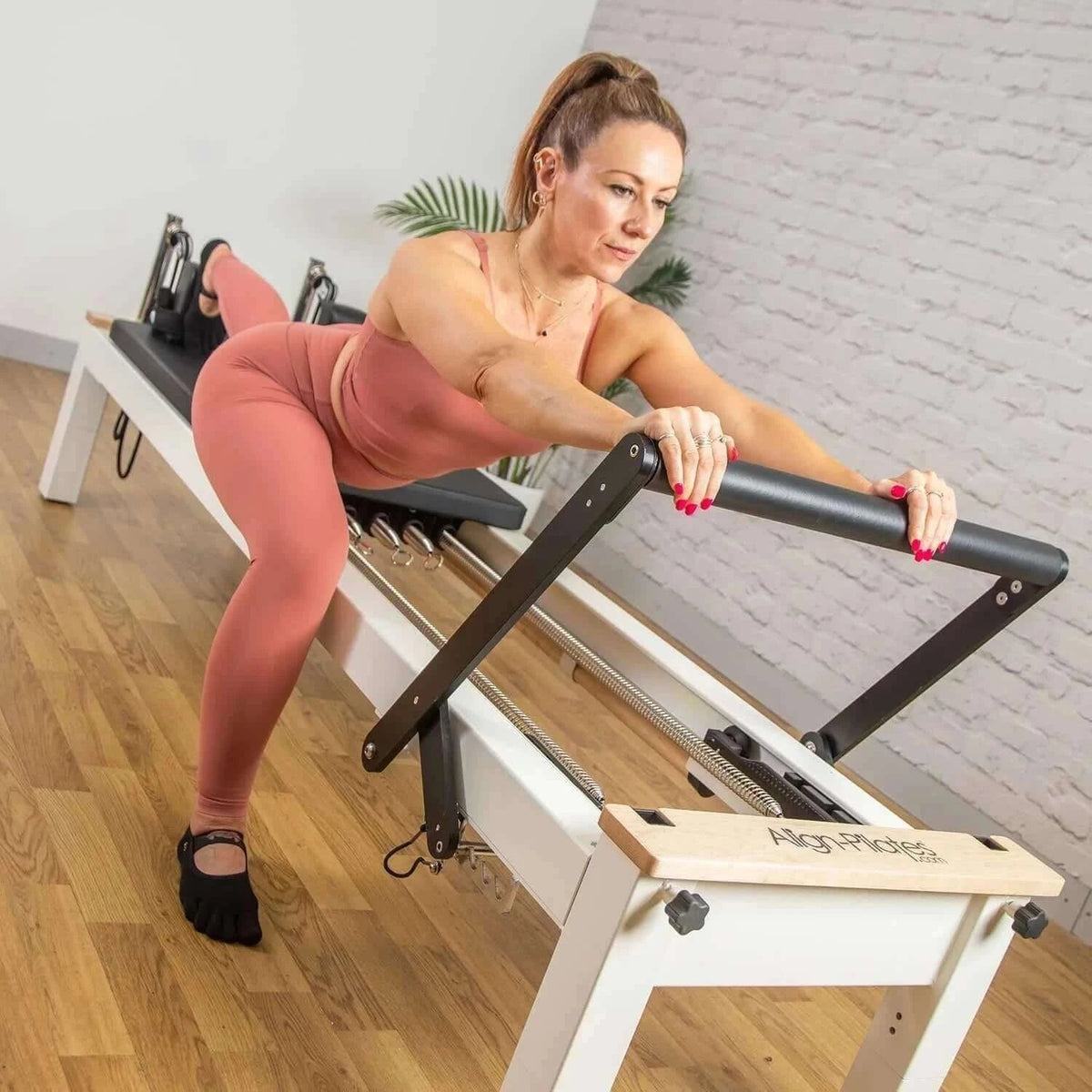

Oversized foot bar
The foot bar has a lowered pivot point for a solid feel and locks in 4 positions, including flat.

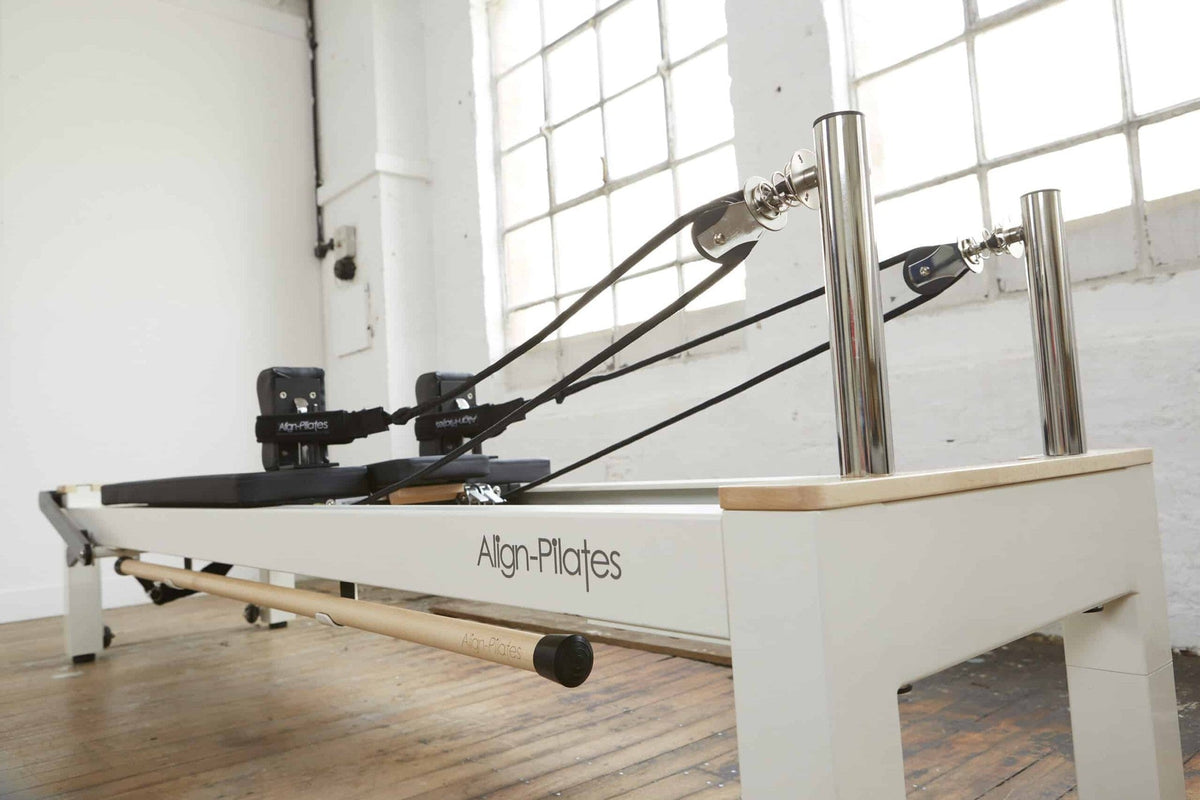

Stainless steel rope risers
Removable stainless steel risers offer 7 height positions, and the Pro Rope Adjusters set rope length quickly between exercises.

Shares C-Series accessories
The C8-S Pro takes the same Jump Board, Mattress Converter and Platform Extender as other C-Series reformers.

Half Cadillac options
Add a Half Cadillac with a clamp style bracket, or pair it with the Wall Mounted Half Cadillac so the tower and reformer can also work as two separate stations. The Full Cadillac does not fit this model.

Specifications

• Frame: White aluminium runners and legs
• Dimensions (L x W x H): 95.7" x 26.4" x 10.2" | 243 x 67 x 26 cm
• Height with Leg Extensions: 16.5" | 42 cm (extensions sold separately)
• Reformer Weight: 155 lb | 70.4 kg
• Carriage Size: 36" x 22.8" | 91.5 x 58 cm
• Carriage Travel: 41.3" | 105 cm
• Wheels: 8 PU wheels
• Springs: 5 music wire: 2 light, 2 medium, 1 strong
• Spring Bar: Rapid Change
• Foot Bar: Oversized, lockable, 4 positions including flat
• Rope Risers: Removable stainless steel, 7 heights
• Adjustable Feet: Yes
• Max User Weight: 330 lb | 150 kg
• Shipping Carton: 1 box: 94.5" x 27.6" x 12.4" (176 lb)

Installation

Delivery in one carton
The C8-S Pro ships in a single carton of about 80 kg, so plan for two people to move and unpack it.

Assembly time
Align allows 30 minutes to 1 hour to assemble the C8-S Pro. Watch the assembly video before you start.

Resources

• Align Pilates reformer safety and maintenance guide (PDF). Routine inspection schedule for Align reformers.

Warranty, Shipping and Returns

The manufacturer's commercial warranty applies from the purchase date to the first owner and is rated for up to 37.5 hours of use a week and users up to 330 lb (150 kg). The terms are set by component: ten years on metal and aluminium frames and welded parts, five years on wooden frames and the spring bar, three years on the footbar mechanism, two years on other non-wear parts and one year on ropes, straps, clips, handles and wheels.

Spring cover is two years or 3,000 hours for studios with five reformers or fewer, and one year or 3,000 hours for larger studios. Upholstery carries 90 days from delivery. The warranty does not cover normal wear, damage from misuse or unapproved repairs, cosmetic scratches or rust, and it requires the maintenance schedule in the manual to be followed.

Shipping
We ship free to every US address. Stocked Align-Pilates equipment leaves the warehouse within two business days of order confirmation, with larger apparatus palletised for freight so it arrives undamaged. Expect a call from the carrier to schedule delivery to your curb, and have a helper ready to move the boxes indoors. Typical delivery is 1 to 3 weeks, and tracking follows by email.

Damage in transit
Inspect the shipment before signing for it. Write any damage on the receipt, photograph it and contact us within 48 hours.

Returns
Under Align-Pilates' policy, reformers, cadillacs, chairs and ladder barrels cannot be returned once shipped, so please check your space and the specifications before ordering; we are glad to help you choose. If equipment arrives damaged, defective or incorrect, contact us within 48 hours of delivery and we will arrange the replacement with the manufacturer. Orders can be cancelled free of charge until they are dispatched.

About Align-Pilates

Align-Pilates designs Pilates apparatus for studios, clinics and homes, and is known for giving studio features such as rapid-change spring bars, oversized footbars and precision rope adjusters to machines at a realistic price. The line-up covers reformers in aluminium, steel and maple, cadillac conversions, chairs, barrels and a full set of series-specific accessories. Kloz Inc is its exclusive North American distributor.

Merovea sells Align-Pilates as an authorised reseller, with every order supplied new and covered by the manufacturer's warranty.
