Align Pilates Combo Chair III

The Align Pilates Combo Chair III is the third generation of Align's Wunda style chair, the compact apparatus Joseph Pilates designed around a padded seat, springs and a foot pedal.

Its pedal splits in two, so clients can press with both feet together or work one side at a time. Four springs hook onto a chromed spring tree with four positions, and two removable handles adjust through nine heights for standing and pressing work.

Compared with the earlier chair, version III adds a pedal locking mechanism, a pedal axle running on roller bearings, rubber coated silent spring hooks and a chromed spring tree for smoother, quieter operation.

What's Included:

• Base frame with wheels
• Seat support frame and upholstered seat pad
• 2 maple veneered side panels and front plate
• 2 split foot pedals with pivot pole and bearing housings
• 2 chromed spring holder trees
• 4 springs (2 green strong, 2 black extra strong)
• 2 removable handles with height adjustment bars and holders
• 2 jump board fasteners and eyelet bolts
• Hardware pack, multitool, 5 mm and 6 mm Allen keys

Features

Split pedals
Undo the connecting bar under the pedals and slide it back to let each pedal move on its own. Refasten it to work both pedals as one.

Four spring positions

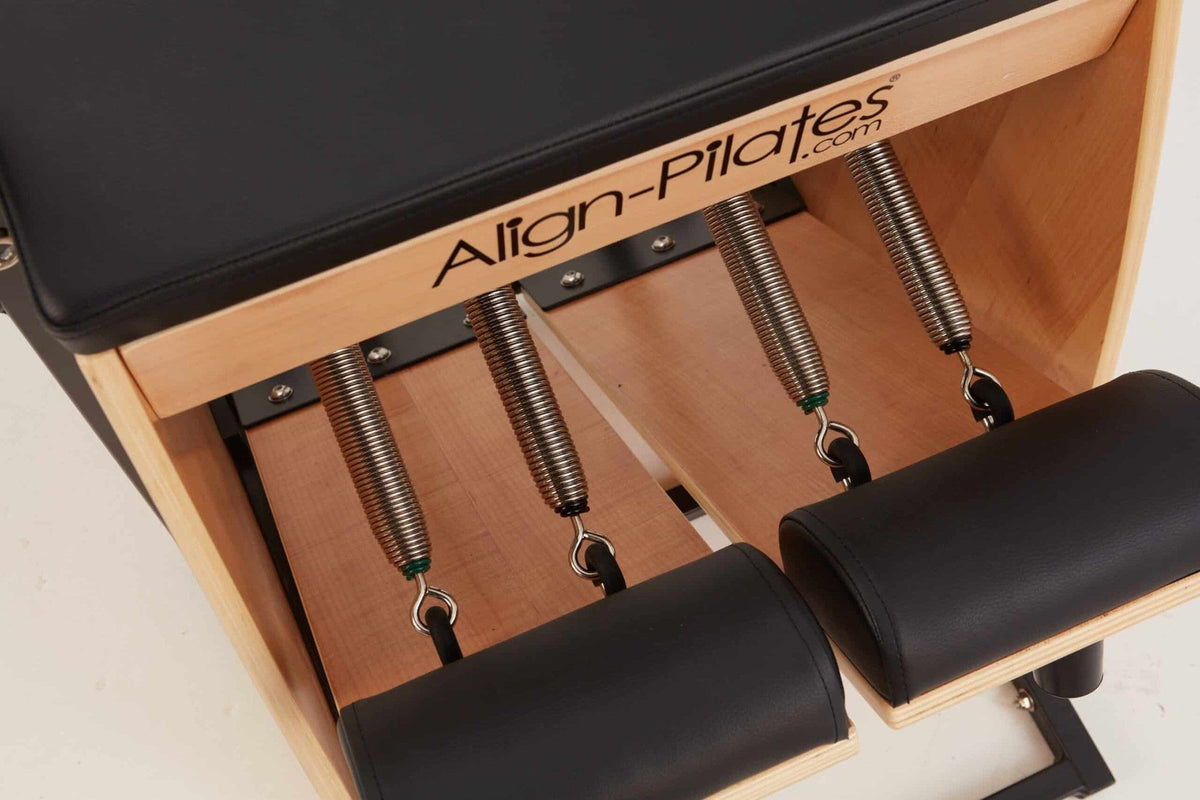

Two strong and two extra strong springs hook onto a chromed tree. A higher peg adds resistance, a lower peg lightens it and brings the pedals closer to the floor.

Height adjustable handles
Pull out the knob, slide the handle to one of nine holes and tighten it. The handles have anti slip grips and lift out completely when not needed.

Quieter pedal action
Roller bearings on the pedal axle and rubber coated spring hooks cut noise, and a locking mechanism holds the pedals in place.

Wall friendly frame
A cut away frame lets you reach the springs with the chair against a wall, and eyelets accept resistance bands or springs.

Jump board ready
Fasteners on the seat back accept the A Series reformer jump board, an optional add on you can buy later.

Specifications

• Model: Combo Chair III
• SKU: PAP-CHAIR3
• Assembled Size (L x W x H): 23.6" x 20.5" x 25.6" | 60 x 52 x 65 cm
• Product Weight: 83.8 lb | 38 kg
• Frame: Full metal frame with maple veneered side panels
• Pedal: Split pedal with connecting bar, locking mechanism, roller bearing axle
• Springs: 4 nickel plated music wire springs (2 strong, 2 extra strong)
• Spring Positions: 4, on chromed spring holder trees
• Handles: 2 removable, 9 height positions, anti slip grips
• Extras: Band eyelets, jump board fasteners, rubber feet, wheels
• Use: Indoor use on a level, non slip surface
• Spring Replacement: Every two years

Installation

Lay out the parts
Unpack onto a clean floor with something soft under the maple panels. The multitool and 5 mm and 6 mm Allen keys are supplied.

Build the frame
Bolt the spring trees to the base frame, then add the seat support frame, side panels and handle holders, leaving bolts loose for now.

Fit pedals and seat
Thread the pivot pole through both pedals, set it in the bearing housings, add the front plate and seat pad, then tighten every bolt.

Springs and handles
Hook one spring of each strength to each pedal, attach them to the trees at matching heights, then fit and set the handles.

Resources

• Align-Pilates Combo Chair III assembly and user manual (PDF). Parts lists, assembly steps, spring and handle adjustment and maintenance.
