Align Pilates F3 Folding Reformer

The Align Pilates F3 is a folding reformer made for homes that do not have a dedicated workout room. It folds into a compact, self contained unit in a few minutes and rolls away on its built in wheels.

The carriage is designed so its wheels never cross the fold joint, and it runs on aluminium runners with an eight wheel layout. In use it feels like a fixed frame reformer, with 97 cm of carriage travel.

Four nickel plated music wire springs, the same type fitted to Align studio machines, give smooth progressive resistance. The footbar, rope risers, rope length, headrest and shoulder rests all adjust to suit users from 145 to 193 cm tall.

What's Included:

• F3 folding reformer frame with footbar and 2 locking knobs
• Carriage bed with 3 position headrest and shoulder rests
• 4 nickel plated music wire springs (2 strong, 1 medium, 1 light)
• 2 removable rope risers with pulleys
• 2 ropes with silent double loop handles
• Assembly bolts and Allen key

Features

Folds in minutes

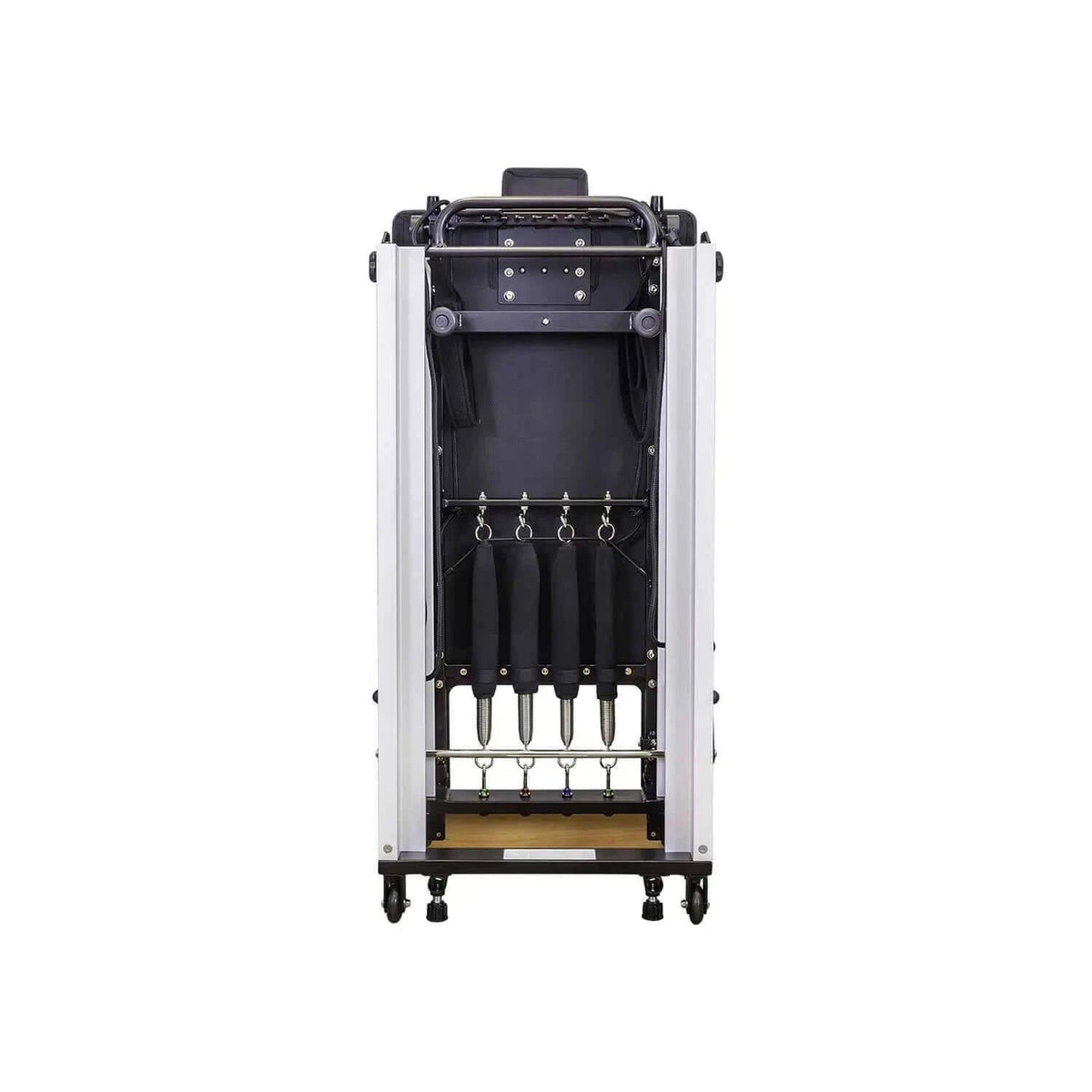

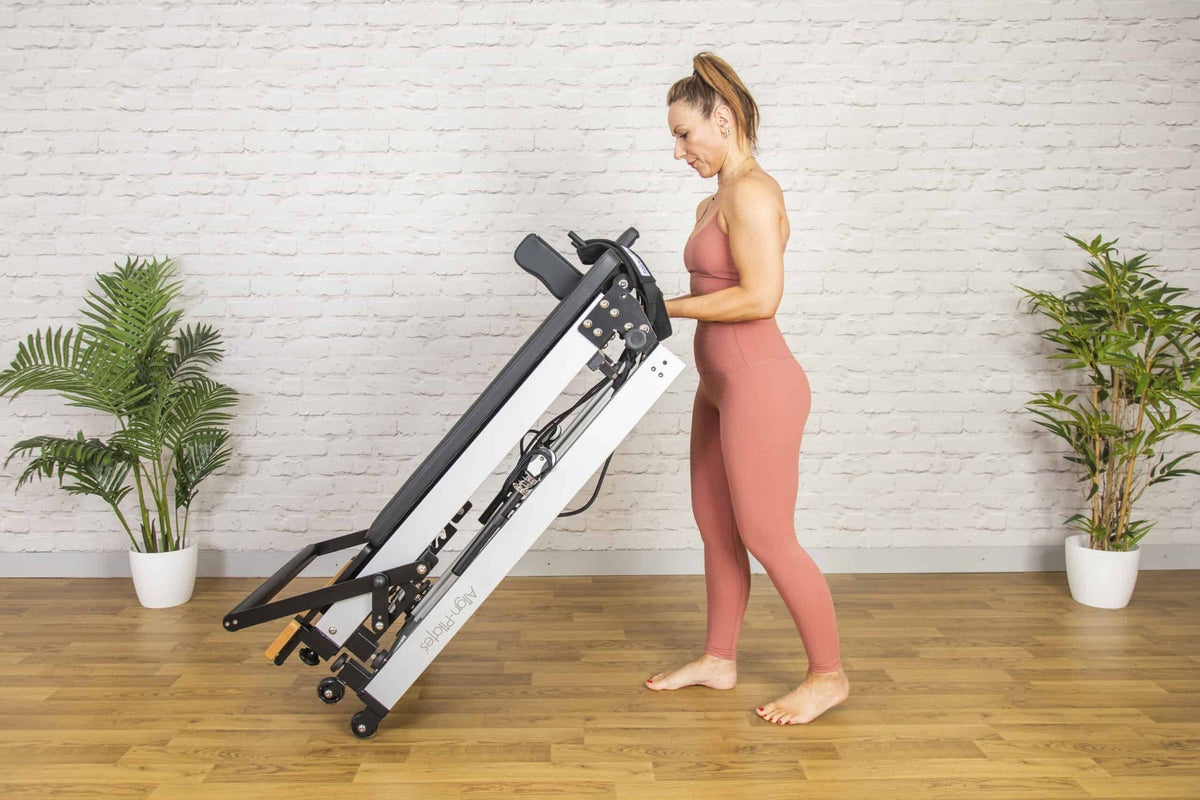

Remove the rope risers, lift the frame upright and lock it closed with the two knobs. Folded, the F3 measures 143.5 x 70 x 34.5 cm.

Carriage never crosses the join
The carriage layout keeps its wheels clear of the hinge, so the ride stays smooth along the full 97 cm of travel on aluminium runners.

Studio grade springs
Four nickel plated music wire springs in three strengths, color coded green, red and blue, combine for a wide range of resistance.

Moves open or closed
Four wheels let you move the reformer when it is open or folded. Tip it onto the wheels and push it like a wheelbarrow.

Takes a jump board
An optional Align jump board fits the F3 for cardio and plyometric work.

Specifications

• Open Size: 97.2" x 27.6" x 18.5" | 247 x 70 x 47 cm
• Folded Size: 56.5" x 27.6" x 13.6" | 143.5 x 70 x 34.5 cm
• Weight: 128 lb | 58 kg
• Carriage Size: 35" x 22.8" | 89 x 58 cm
• Carriage Travel: 38.2" | 97 cm
• Springs: 4 nickel plated music wire (2 strong, 1 medium, 1 light)
• Spring Bar: Fixed
• Footbar: 3 positions plus down and storage
• Rope Risers: Removable, 3 heights, 5 rope length settings
• Runners and Wheels: Aluminium runners, 8 wheel carriage
• Headrest: 3 positions
• Shoulder Rests: Fixed, choice of 2 widths
• Feet and Wheels: 6 adjustable feet, 4 transport wheels
• User Height: 4'10" to 6'4" | 145 to 193 cm
• Max User Weight: 265 lb | 120 kg
• Standard: ISO 20957-1 Class H

Installation

Unpack both cartons
The larger box holds the frame and a parts box, the smaller one holds the carriage bed. Align estimates about 30 minutes for setup.

Unfold and fit the footbar
With a second person, unscrew the locking knobs, lower the frame flat and relock it open. Bolt the footbar selector bar to the adjustment arm.

Level and add the carriage
Adjust the 6 feet with a spirit level, attach the springs and ropes to the carriage, then lower it onto the runners with the springs toward the footbar.

Finish the setup
Fit the rope risers, double loop handles and shoulder rests, choosing the wide or narrow shoulder rest position before tightening.

Resources

• Align Pilates F3 assembly and user guide (PDF). Unfolding, assembly, folding and troubleshooting.
• Align Pilates reformer safety and maintenance guide (PDF). Routine checks and service intervals for Align reformers.

Warranty, Shipping and Returns

The F3 is covered by Align-Pilates' home warranty, which applies to domestic use only; the F3 is not warranted for commercial or professional use. From the date of purchase the original owner has two years on the main steel frame and standing platform, two years or 3,000 hours on the springs, one year on all other parts including wheels, straps and ropes, and 90 days on the upholstery from delivery.

Align recommends replacing springs after 3,000 hours or two years, whichever comes first. Wear and tear, misuse, modification, finish scratches and upholstery tears are excluded, and the warranty is void if springs are not changed as specified.

Shipping
We ship free to every US address. Stocked Align-Pilates equipment leaves the warehouse within two business days of order confirmation, with larger apparatus palletised for freight so it arrives undamaged. Expect a call from the carrier to schedule delivery to your curb, and have a helper ready to move the boxes indoors. Typical delivery is 1 to 3 weeks, and tracking follows by email.

Damage in transit
Inspect the shipment before signing for it. Write any damage on the receipt, photograph it and contact us within 48 hours.

Returns
Under Align-Pilates' policy, reformers, cadillacs, chairs and ladder barrels cannot be returned once shipped, so please check your space and the specifications before ordering; we are glad to help you choose. If equipment arrives damaged, defective or incorrect, contact us within 48 hours of delivery and we will arrange the replacement with the manufacturer. Orders can be cancelled free of charge until they are dispatched.

About Align-Pilates

Align-Pilates designs Pilates apparatus for studios, clinics and homes, and is known for giving studio features such as rapid-change spring bars, oversized footbars and precision rope adjusters to machines at a realistic price. The line-up covers reformers in aluminium, steel and maple, cadillac conversions, chairs, barrels and a full set of series-specific accessories. Kloz Inc is its exclusive North American distributor.

Merovea sells Align-Pilates as an authorised reseller, with every order supplied new and covered by the manufacturer's warranty.
