Align Pilates Half Cadillac Frame for A, M and C Series Reformers

The Align Pilates Half Cadillac Frame is a stainless steel tower that adds swing through bar, roll down bar and spring work to a reformer, bringing most of the Cadillac repertoire onto one machine.

It fits the A2 and A8-Pro, the C1-Pro, C2-Pro, C2-Pro RC, C8-Pro and C8-S, and the M2 and M8 reformers. Each series needs its own Half Cadillac Bracket. With the Wall Bracket instead, the tower mounts on a solid wall and works without a reformer.

The tower is sold as the frame only. The bracket or wall bracket and the reformer are separate purchases.

What's Included:

• Half Cadillac stainless steel frame
• Swing through bar with quick release safety strap
• Roll down bar
• 1 pair of foot straps
• 1 pair of hand handles
• 2 pairs of rapid adjust double eyelet spring holders
• 8 carabiners and 8 double ended dog clips
• 8 springs: four 47 cm standard and four 64 cm long

Features

Bolts onto A, M and C reformers
A bracket made for each reformer series holds the tower at the riser end, and it works with any of the available leg heights.

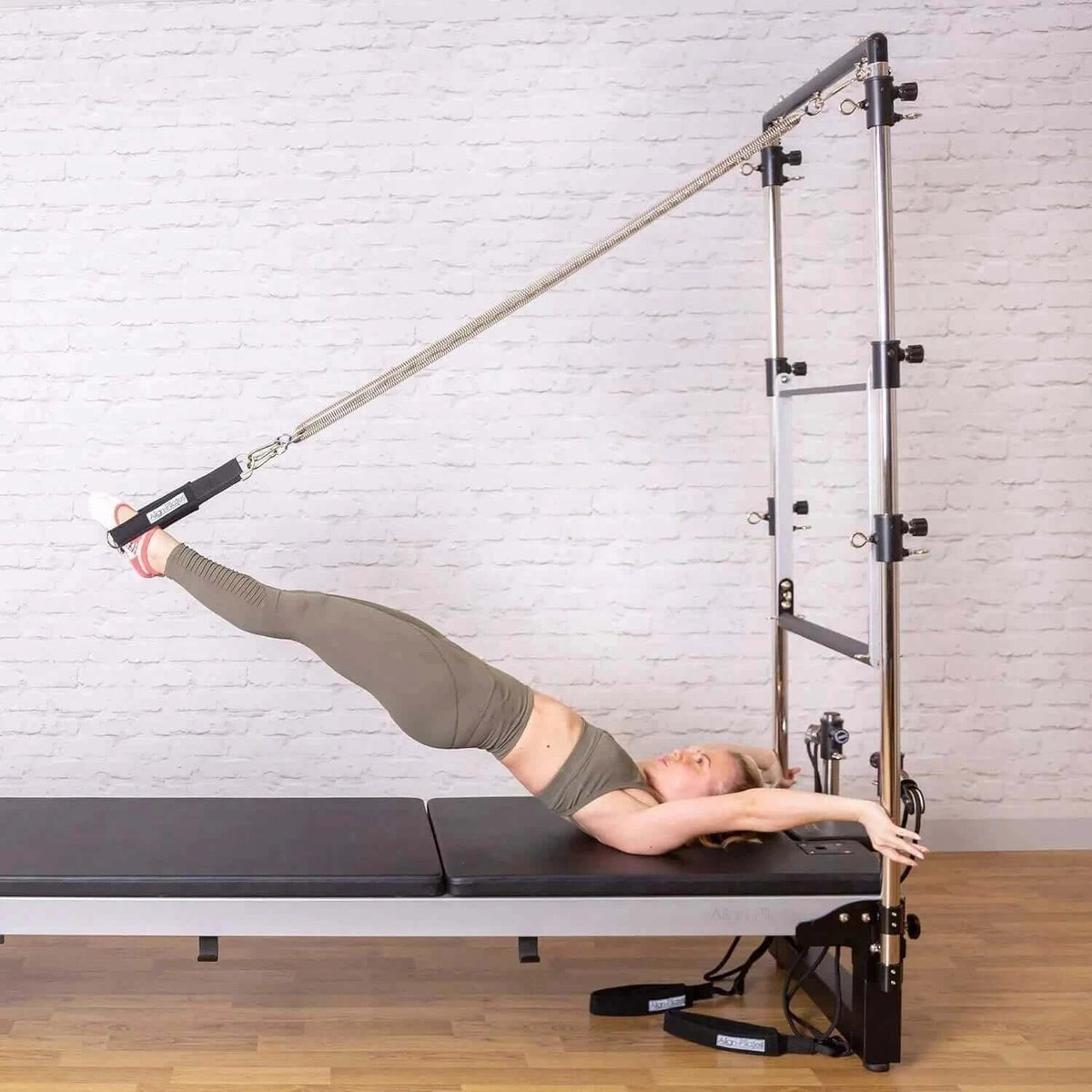

Adjustable swing through bar
The aluminium swing through bar changes height with pull knobs, and a quick adjust safety strap holds it when springs load it from below.

Sliding spring eyelets
Four sliding holders lock into set holes on the uprights, with eyelets on both faces so springs can pull from either direction.

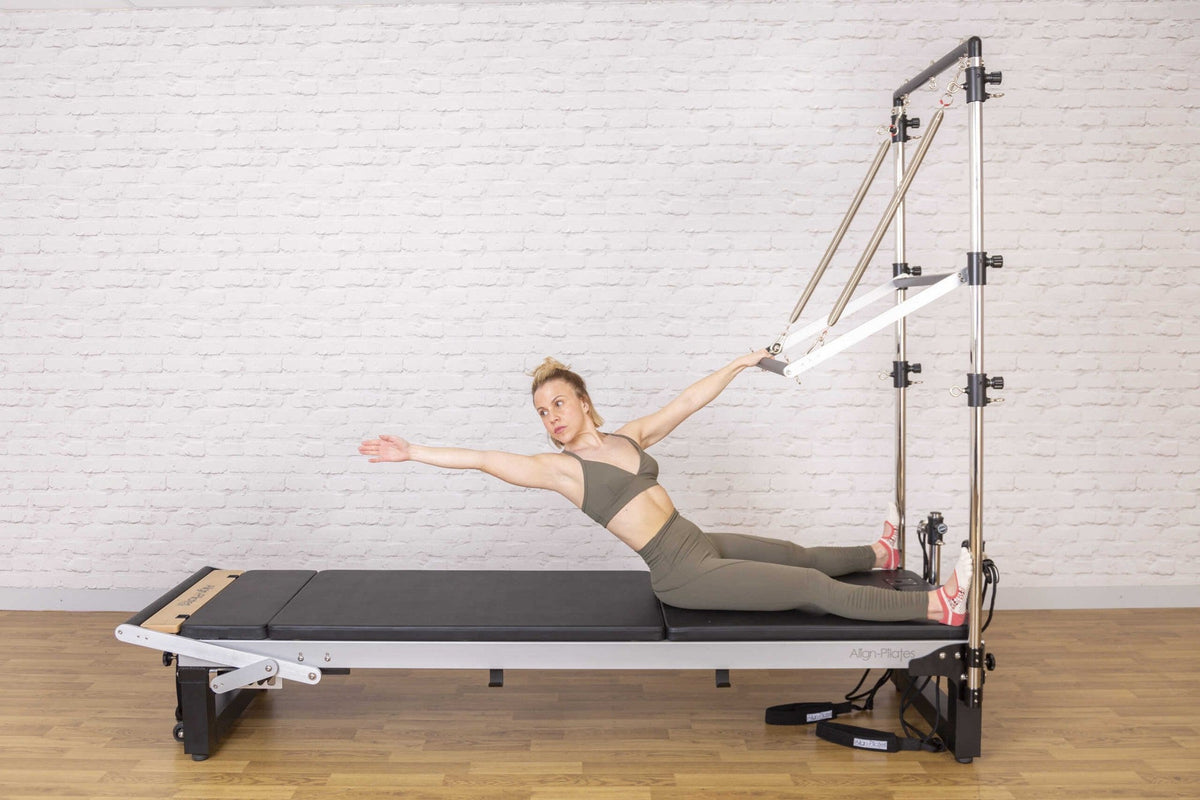

Roll down bar and 8 springs
A roll down bar and eight springs in two lengths come in the box. Other 47 cm spring strengths match those used on Align reformers.

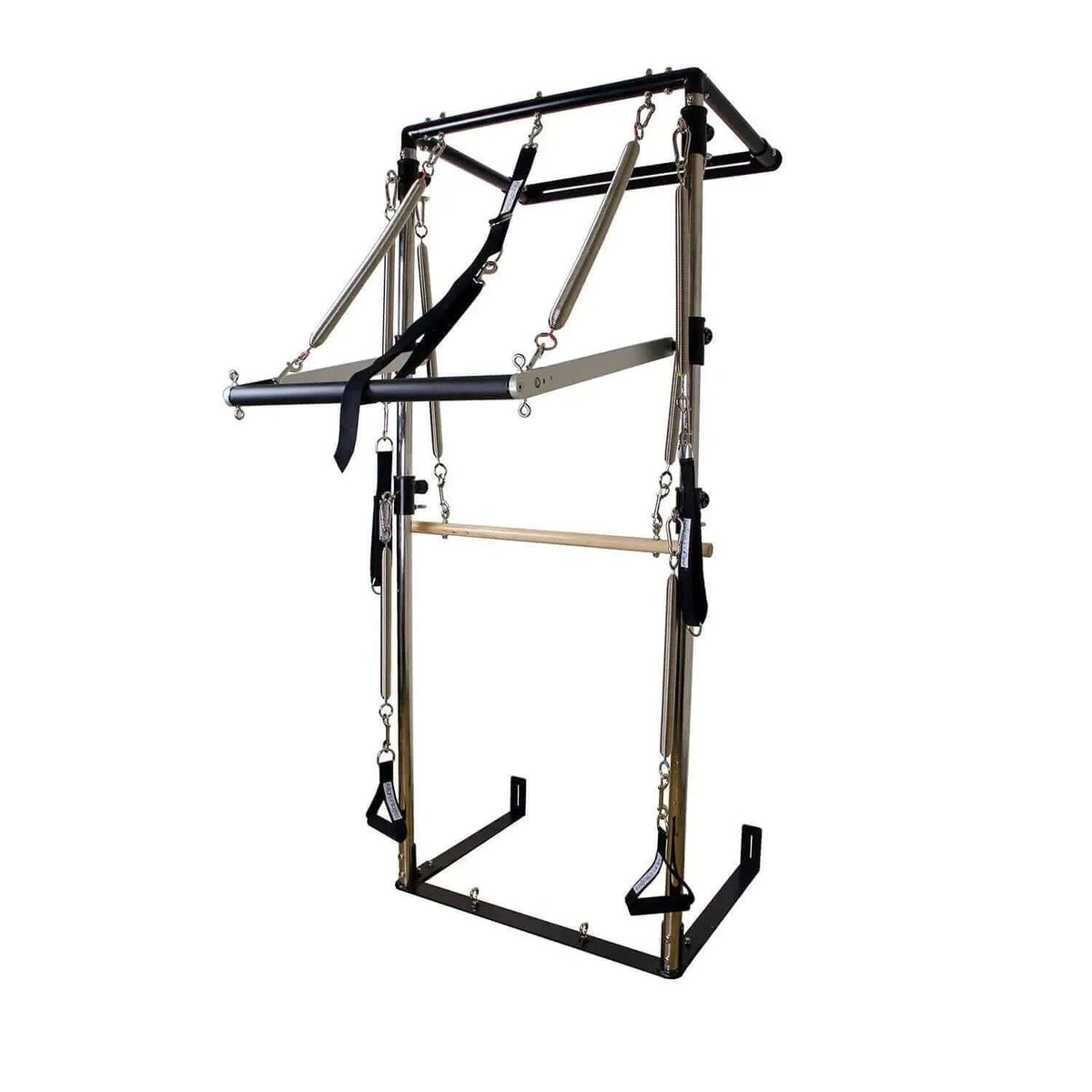

Use it against a wall
Add the Half Cadillac Wall Bracket to fix the tower to a solid wall and train without a reformer.

Specifications

• Compatibility: A2, A2R, A2RII, A8-Pro, C1-Pro, C2-Pro, C2-Pro RC, C8-Pro, C8-S, M2 and M8 reformers. Not the C1
• Also Needed: Half Cadillac Bracket for your reformer series, or the Half Cadillac Wall Bracket
• Frame: Stainless steel
• Assembled Height, A Series: Low leg 78.3" | 199 cm, standard leg 83.9" | 213 cm, rehab leg 92.5" | 235 cm
• Assembled Height, C Series: 76.8" | 195 cm, 81.9" | 208 cm with leg extensions
• Assembled Height, M Series: 83.9" | 213 cm
• Springs: 8: 2 long strong and 2 long light at 25.2" | 64 cm, plus 4 standard at 18.5" | 47 cm
• Max User Weight: 330 lb | 150 kg
• Carton: 1 box, 76.8" x 32.3" x 7.9" | 195 x 82 x 20 cm, 66.1 lb | 30 kg

Installation

Check the ceiling first
Inserting the tower needs 2.45 m of ceiling on 40 cm legs and 2.75 m on 64 cm legs. On A2 series reformers the legs can be removed, the tower fitted and the legs refitted if the room is lower.

Fit the bracket, then the tower
Attach the series bracket with the supplied tools, loosen the grub screws, then with a helper slide the frame into the brackets and tighten two grub screws per bracket.

Clip on springs and safety strap
Use carabiners where springs meet the frame and dog clips near the hands. The safety strap must be fitted whenever springs load the swing through bar from underneath.

Resources

• Align-Pilates Half Cadillac assembly and user guide (PDF). Compatibility, bracket fitting for A, C and M series, safe use and maintenance.
