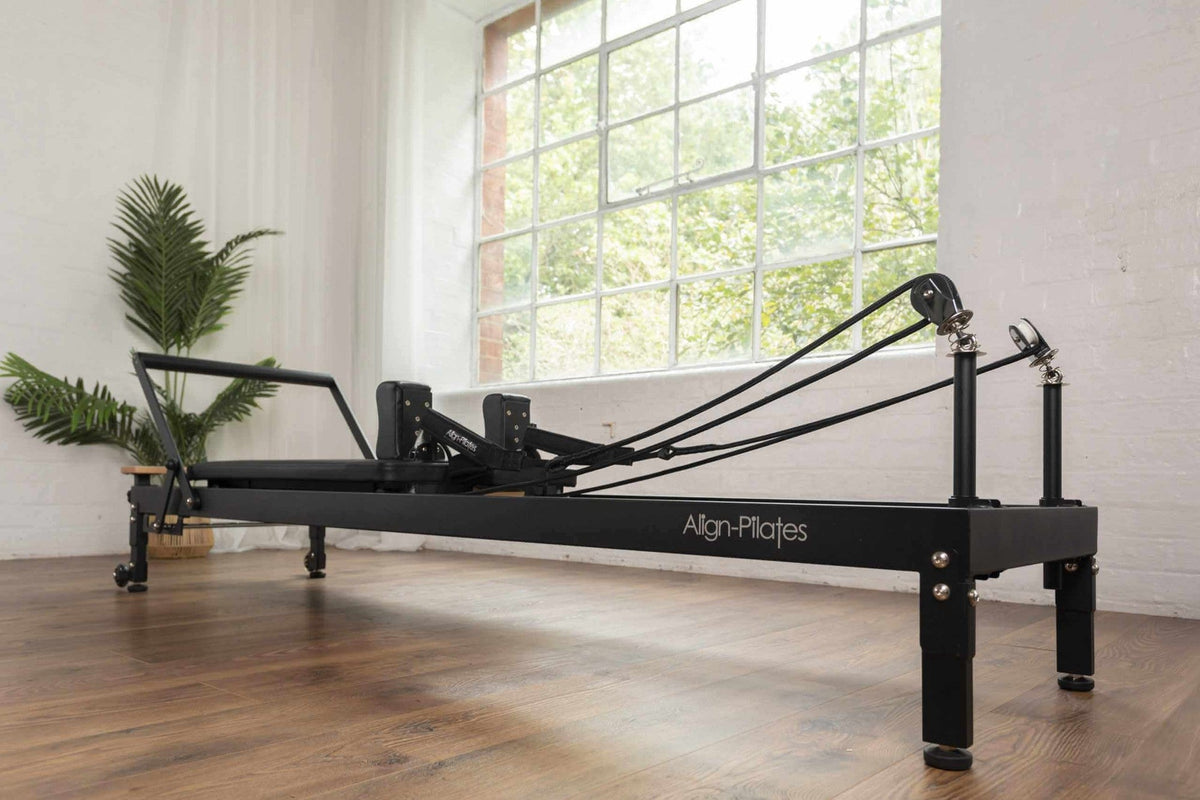

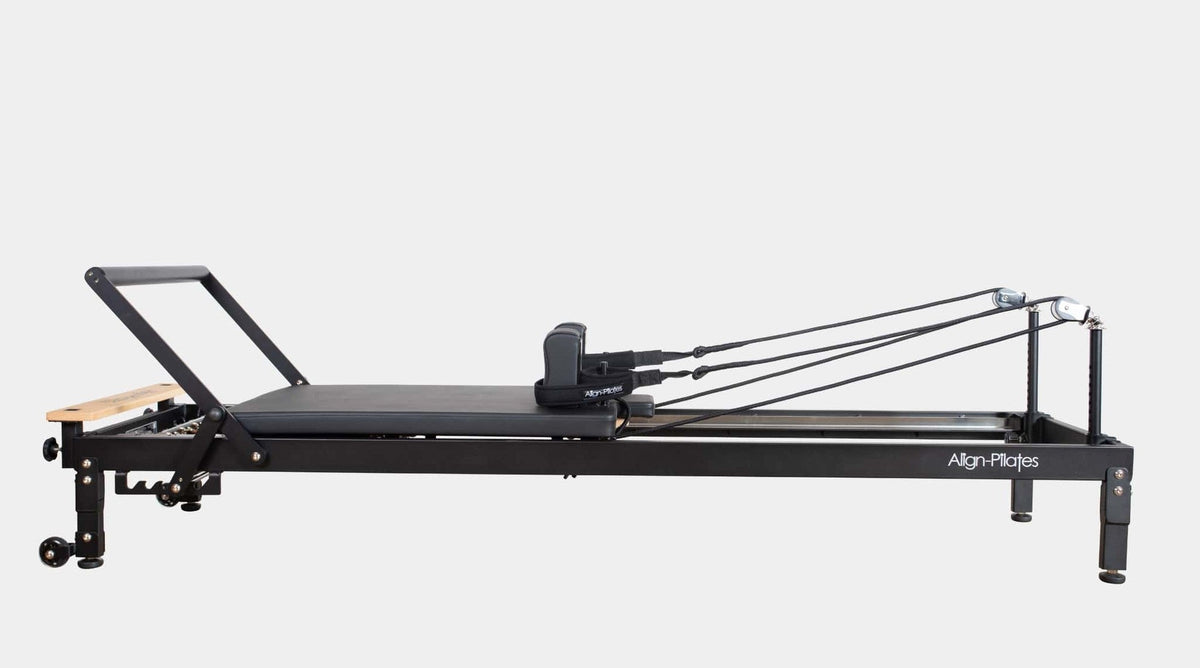

Align Pilates R8-Pro Reformer

The Align Pilates R8-Pro is a light commercial reformer whose name stands for Retro 8 wheel. Carriage size, footbar and carriage distances, spring bar positions and overall height follow the proportions of Joseph Pilates' original machines.

Modern touches sit on that classic layout. A Rapid Change spring bar with 3 positions, Pro Rope adjusters behind the shoulder rests, height adjustable rope risers and Silent ropes make changes quick and quiet.

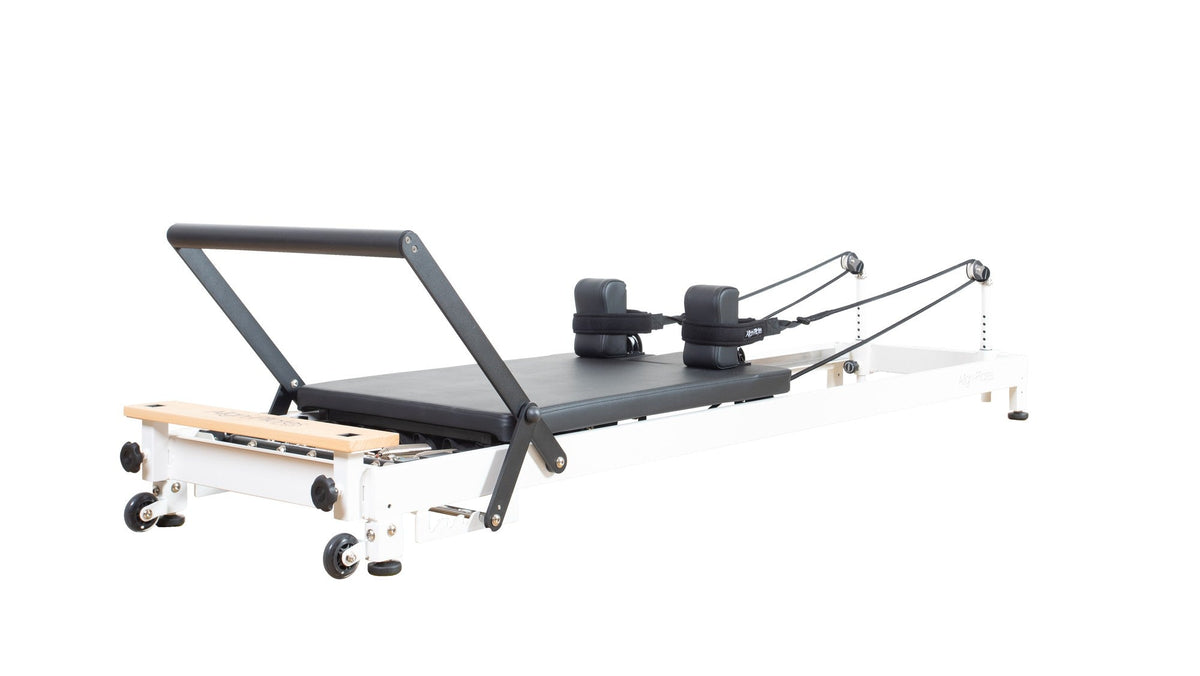

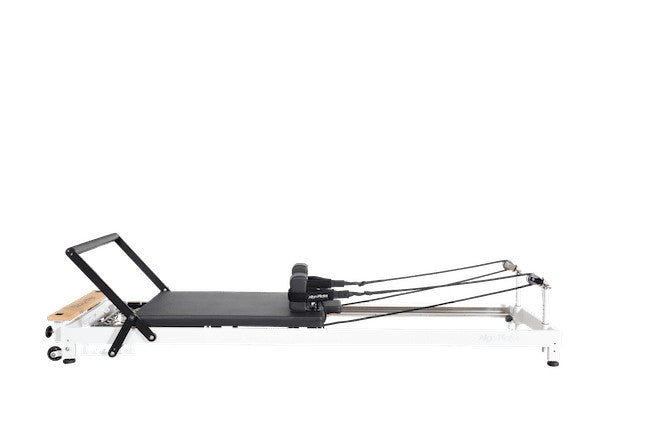

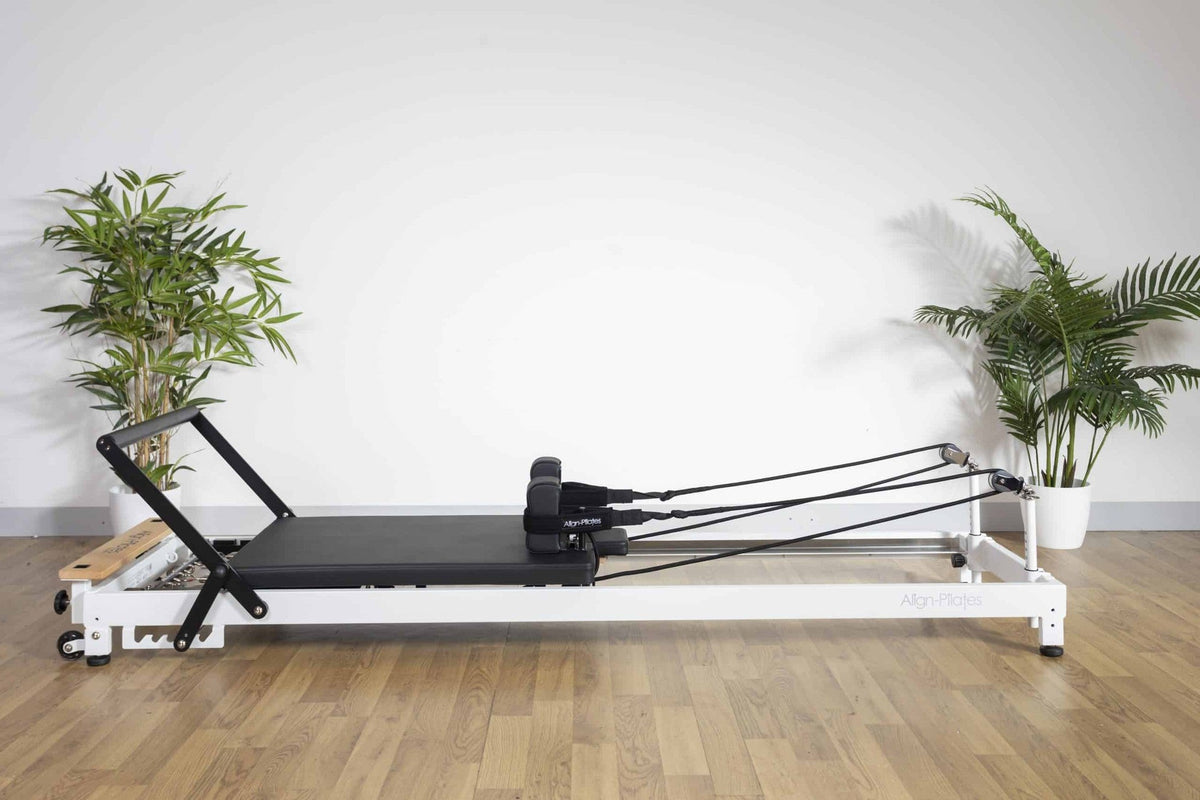

It ships with 4 springs and has room for a fifth. The steel frame runs on stainless steel runners with 8 PU wheels, rolls on transport wheels and can stand upright with an optional jump board. Choose a Black or White frame.

What's Included:

• R8-Pro reformer frame with footbar and transport wheels
• Carriage with off centre shoulder rests
• 4 springs (2 strong, 1 medium, 1 light)
• Rapid Change spring bar with 3 positions
• Height adjustable rope risers with Pro Rope adjusters
• Silent ropes with double loop handles

Features

Rapid Change spring bar
Three spring bar positions change in one quick move. The R8-Pro carries 4 springs and has a spare slot for an optional fifth.

Pro Rope adjusters
The rope adjusters sit just behind the shoulder rests, so rope length can be changed quickly between exercises.

Classic geometry
Carriage dimensions, footbar height and spring bar spacing follow a traditional reformer, while rope risers and Silent ropes keep the pulley position close to a classic machine.

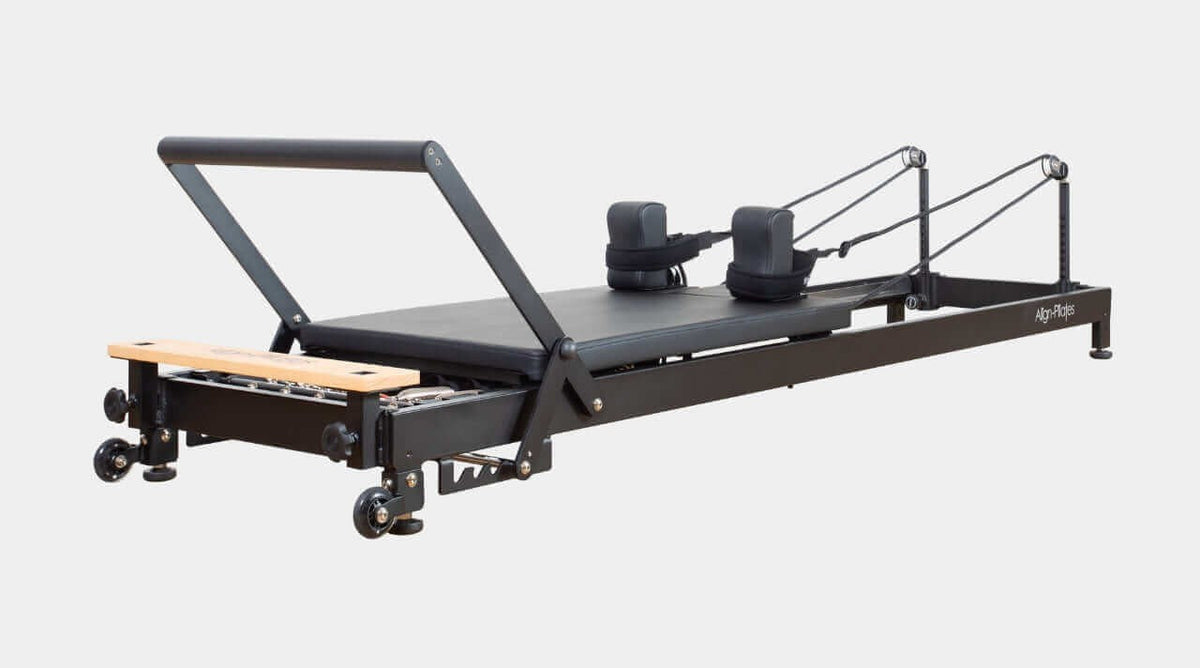

Four footbar heights
The footbar sets at four heights including a flat position, and the long 97.5 cm carriage travel suits a full repertoire.

Stands with a jump board
Fit the optional jump board and the R8-Pro can be stood upright for storage. Transport wheels make repositioning easy.

Specifications

• Dimensions: 97.6" x 26.4" x 9.1" | 248 x 67 x 23 cm
• Weight: 130 lb | 59.1 kg
• Carriage Size: 35" x 22" | 89 x 56 cm
• Carriage Travel: 38.4" | 97.5 cm
• Springs: 4 (2 strong, 1 medium, 1 light), space for a fifth
• Spring Bar: Rapid Change, 3 positions
• Footbar: 4 heights including flat
• Rope System: Pro Rope adjusters, height adjustable risers, Silent ropes
• Frame: Steel, Black or White
• Runners and Wheels: Stainless steel runners, 8 PU wheels
• Leg Options: 9.1" | 23 cm or 14.2" | 36 cm
• Max User Weight: 265 lb | 120 kg
• Rated Use: Home and light commercial, up to 20 hours per week
• Shipping Carton: 1 box: 240 x 73.5 x 27 cm (67.9 kg)

Installation

One carton, quick build
The R8-Pro arrives in a single box and Align estimates about 30 minutes to assemble. The carton weighs 67.9 kg, so have two people to move it.

Follow the assembly video
Align's assembly video walks through fitting the carriage, rope risers, ropes and springs step by step.

Resources

• Align Pilates reformer safety and maintenance guide (PDF). Routine checks and service intervals for Align reformers.

Warranty, Shipping and Returns

Align-Pilates warrants the R8-Pro under its light commercial terms, for the first owner, from the purchase date. Those terms allow home use plus light commercial use capped at 20 hours a week, for users up to 265 lb (120 kg). Three years applies to the steel frame and the standing platform, two years or 3,000 hours to the springs, one year to every other part including wheels, straps and ropes, and 90 days to the upholstery.

The warranty excludes wear and tear, damage from misuse or modification and cosmetic marks, and it relies on the maintenance schedule in the manual.

Shipping
We ship free to every US address. Stocked Align-Pilates equipment leaves the warehouse within two business days of order confirmation, with larger apparatus palletised for freight so it arrives undamaged. Expect a call from the carrier to schedule delivery to your curb, and have a helper ready to move the boxes indoors. Typical delivery is 1 to 3 weeks, and tracking follows by email.

Damage in transit
Inspect the shipment before signing for it. Write any damage on the receipt, photograph it and contact us within 48 hours.

Returns
Under Align-Pilates' policy, reformers, cadillacs, chairs and ladder barrels cannot be returned once shipped, so please check your space and the specifications before ordering; we are glad to help you choose. If equipment arrives damaged, defective or incorrect, contact us within 48 hours of delivery and we will arrange the replacement with the manufacturer. Orders can be cancelled free of charge until they are dispatched.

About Align-Pilates

Align-Pilates designs Pilates apparatus for studios, clinics and homes, and is known for giving studio features such as rapid-change spring bars, oversized footbars and precision rope adjusters to machines at a realistic price. The line-up covers reformers in aluminium, steel and maple, cadillac conversions, chairs, barrels and a full set of series-specific accessories. Kloz Inc is its exclusive North American distributor.

Merovea sells Align-Pilates as an authorised reseller, with every order supplied new and covered by the manufacturer's warranty.
