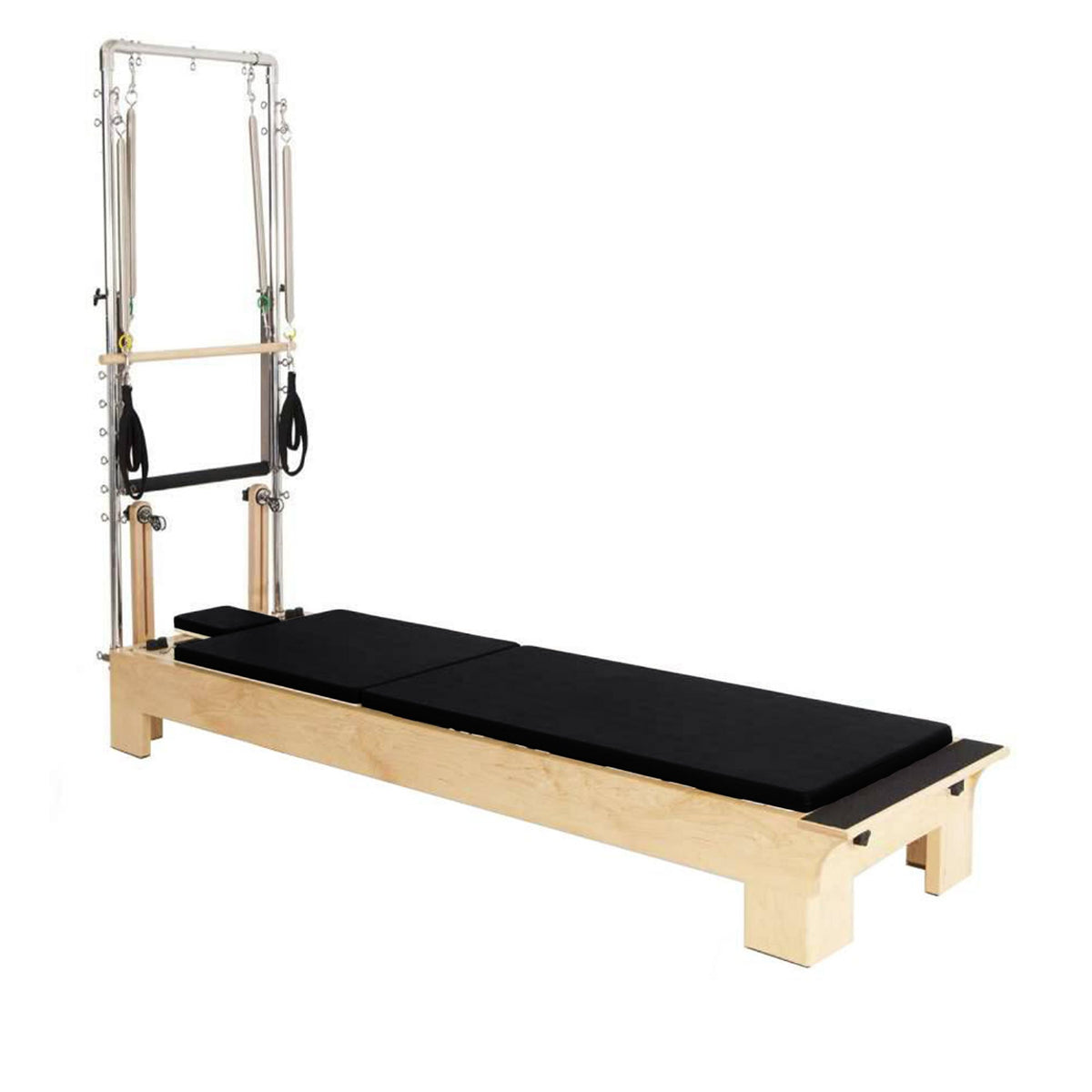

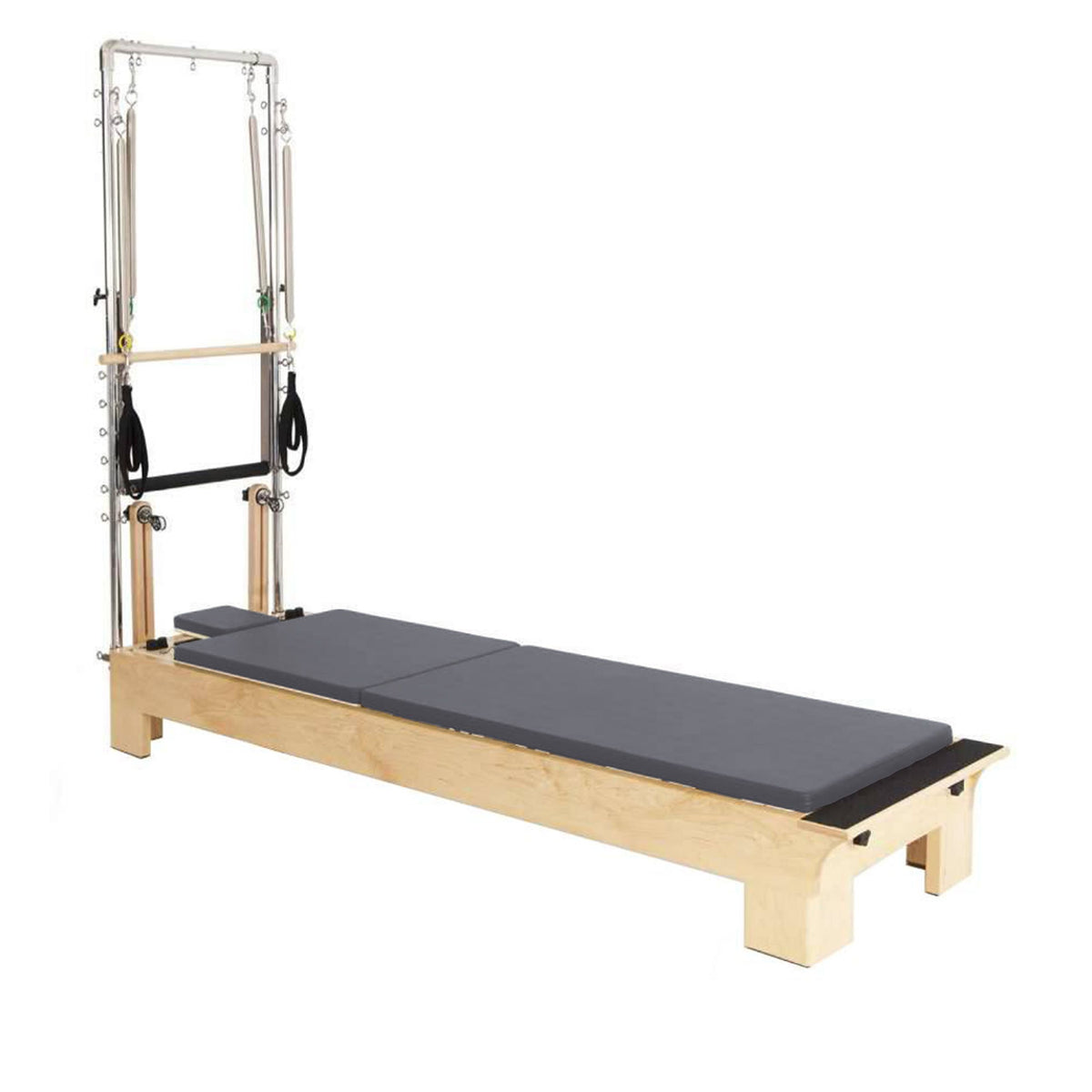

Elina Pilates Wood Reformer with Tower

Wood Pilates Reformer with Tower

The classic Elina Pilates Wood Reformer, extended with a stainless steel half tower that multiplies the exercise repertoire with spring, bar and strap work. Made of rock maple and stainless steel, it delivers exceptional stability and outstanding durability for studios seeking the warmth of wood.

The tower adds eight dedicated springs, a maple roll-down bar and a non-slip push-bar adjustable in three heights, while the reformer keeps its adjustable height pulleys, movable spring bar and high-precision carriage bearings for prolonged Pilates practice and intense use.

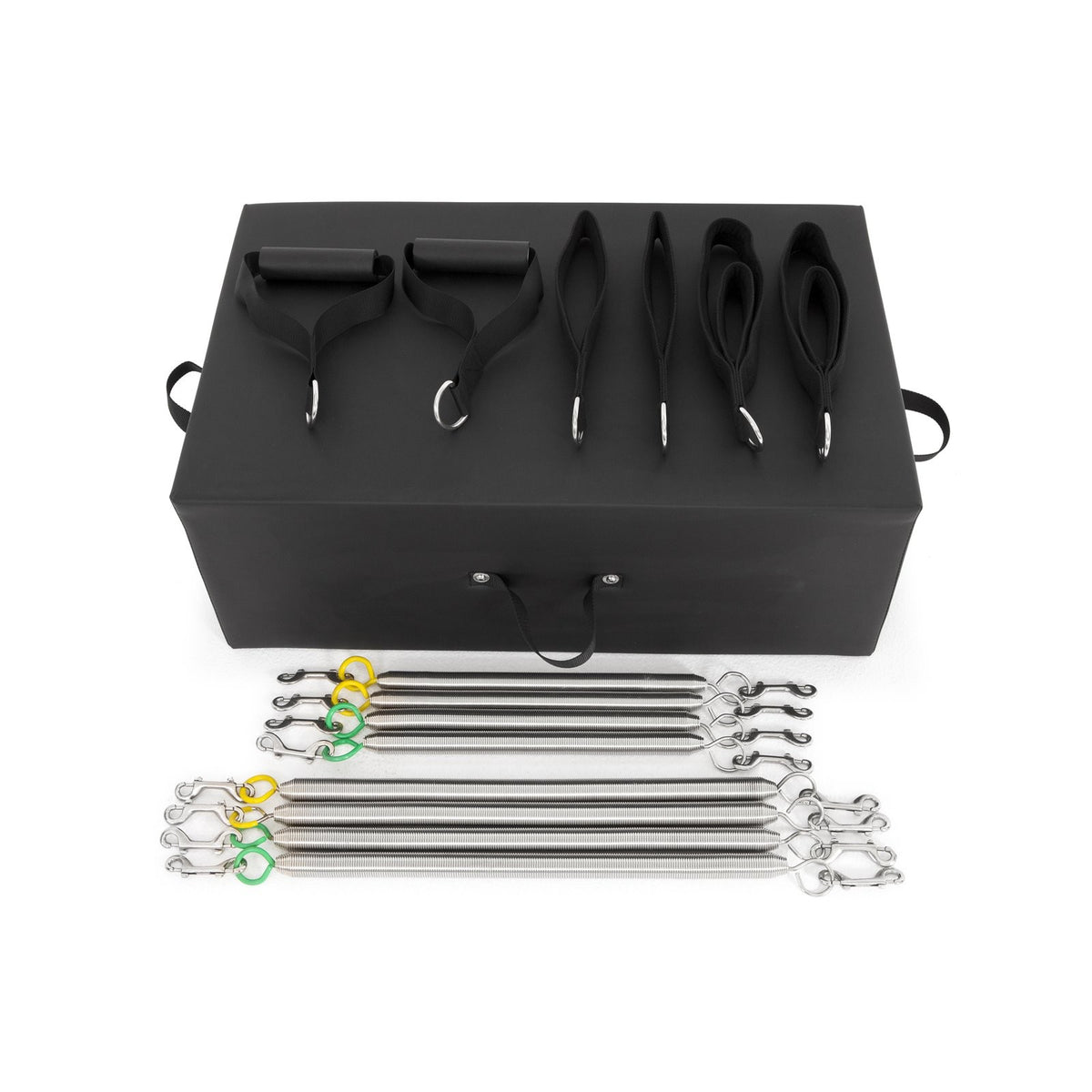

What's Included:

• 1 x Elina Pilates Wood Reformer structure + carriage
• Stainless steel tower with front and rear spring hooks
• Mat to cover the reformer surface, with handles
• Rock maple roll-down bar
• Non-slip push-bar with safety strap
• Padded box and removable wide jump board
• Padded foot platform and padded foot bar
• 1 set of hard foam-padded handles
• 1 set of double-loop cotton handles for hands and feet
• 1 set of simple cotton handles for feet
• Padded shoulder rests
• Reformer springs: 2 red (strong), 2 green (medium), 1 yellow (light)
• Tower springs: 2 short light, 2 short medium, 2 long light, 2 long medium
• Foot strap, pulley posts and one set of pulley ropes

Features

Full Tower Exercise Station
Stainless steel tower with front and rear spring hooks, a rock maple roll-down bar and a non-slip push-bar adjustable in 3 heights with safety strap.

Thirteen Springs in Total
Five reformer springs (2 strong red, 2 medium green, 1 light yellow) on a 4-position spring bar, plus eight tower springs - short and long, in medium and light resistances.

Studio-Grade Rock Maple Frame
Built from rock maple and stainless steel for exceptional stability and durability under intense use.

Ultra-Quiet Carriage Ride
Eight polyurethane wheels with high-precision bearings give the carriage a smooth, near-silent glide.

Adjustable to Every Body
Padded non-slip foot bar adjustable in 4 positions, headrest in 3 positions, carriage stoppers in 3 positions, and height-adjustable rope pulleys.

Complete Studio Bundle
Ships with padded box, removable wide jump board, three sets of handles, a reformer-covering mat and a front foot strap.

Specifications

• Length: 93.31" | 237 cm
• Width: 27.17" | 69 cm
• Bed Height: 12.99" | 33 cm
• Height with Tower: 79.53" | 202 cm
• Weight: 154 lbs | 70 kg (reformer, without accessories)
• Frame Material: Rock maple and stainless steel
• Reformer Springs: 5 (2 strong, 2 medium, 1 light), 4-position spring bar
• Tower Springs: 8 (short and long, medium and light)
• Foot Bar: Padded, non-slip, 4 positions
• Headrest: 3 positions
• Standard Upholstery: Black or Grey (10 more colors made to order)

Installation

It arrives semi-assembled
Elina ships its apparatus part-built and states that assembly is designed to be done without professional assistance: the frame comes as one piece and you add the accompanying parts. Expect to fit the footbar, ropes and any tower or box components supplied with your configuration.

Plan for two people
Delivery is to street level, and at 154 lb this is not a machine to move alone. Two people, a clear path from the curb to the room, and about an hour is the realistic picture. Measure the doorway and any turn at the top of a staircase before delivery day rather than after.

Tools
The fixings and keys needed are supplied in the packaging. No drilling and no wall fixing for a free-standing reformer; wall units and boards are the exception and do need fixing into structure.

First session setup
Once it is together, run the carriage end to end a few times to seat the wheels, check the rope lengths match on both sides, and confirm the footbar locks positively into every position before loading the springs to full.

Resources

• Elina Pilates product catalogue (PDF). The full range, with specification pages for this apparatus covering dimensions, materials and configuration options.

Warranty, Shipping and Returns

This apparatus is covered by the manufacturer's warranty from the date of purchase: a 10-year structural warranty on the frame and welds and a 2-year warranty on all other components. Upholstery and fabric are covered for 90 days against defects in normal use.

To keep the warranty valid: use the equipment indoors in a climate-controlled space, follow the maintenance guidelines in the manual, and replace springs every two years on spring-loaded equipment. The warranty applies to the original purchaser with proof of purchase and covers repair or replacement of defective parts at the manufacturer's option. Warranty claims are handled through us with Elina Pilates' technical service.

Free curbside freight delivery
in the contiguous United States (we do not ship to Alaska, Hawaii or Puerto Rico). Your equipment ships via LTL freight carrier, carefully packed and secured to a wooden skid. Curbside delivery includes liftgate service, where the driver unloads to the curb as close to your building as possible. We recommend having two people available to carry the equipment inside; equipment arrives semi-assembled and is designed to be set up without professional help.

Lead times
Elina Pilates equipment is built at the factory in Spain. In-stock items in standard Black or Grey upholstery typically deliver in 2 to 4 weeks. Special upholstery colors are made to order and take approximately 10 weeks. We confirm your delivery estimate when your order is processed, and the carrier will call to schedule delivery.

Inspect on delivery
please note any damage on the carrier's waybill before signing, and report damaged, missing or incorrect items within 48 hours of receipt. Do not open boxes with box cutters, because blades can damage upholstered parts.

We accept returns within 30 days of delivery on eligible items. Equipment must be unused, in its original packaging with all instructions, accessories and documentation. All returns require a Return Merchandise Authorization (RMA) number issued before shipping the item back; the customer is responsible for return shipping costs.

Non-returnable
made-to-order items (including special upholstery colors), large equipment (reformers, cadillacs, towers, ladder barrels, chairs, wall units and boards, barrels and arcs), accessories and spare parts, except where covered by warranty. If you receive a damaged, defective or incorrect item, contact us within 48 hours and we will make it right.

About Elina Pilates

Elina Pilates has designed and built Pilates apparatus in Navarra, northern Spain since 2007, from its own plant in the Noaín-Esquíroz industrial park outside Pamplona. Close to two decades in, its machines are in studios across five continents.

Rock maple is the house timber, chosen for strength and dimensional stability across the professional wood range; the aluminium machines use anodised high-strength extrusion. One detail runs through nearly the whole catalogue, a near-silent carriage on eight polyurethane wheels with high-precision bearings. Machines are developed with working Pilates teachers, and Elina holds multiple patents and registered designs.

The studio wood range
is where Elina started. The Wood Reformer was the company's first machine and remains the entry point to the professional wood line, with rock maple and stainless steel, adjustable-height pulleys and a movable spring bar. Physio models raise the bed for clinical work at standing height. The Club Reformer is the newest, built for group classes: its spring bar shifts on a lever, sliding the carriage nearer or further from the footbar while holding tension balanced, across five positions.

Merovea is an approved Elina Pilates retailer. Equipment is supplied new with the full manufacturer's warranty, and we handle any claim directly with Elina.
